OLED Display Driver | Solomon Systech
SSD1306
Technical datasheet, operating ranges, and workbench specifications for SSD1306 manufactured by Solomon Systech.

Component image could not be loaded.
Complete Component Specifications
| Category | OLED Display Driver |
|---|---|
| Manufacturer | Solomon Systech |
| Voltage Min | 1.65 |
| Voltage Max | 3.3 |
| Logic Level | 3.3V / 5V Tolerant |
| Pins | 31 |
| Interface | I2C, SPI, 8-bit Parallel |

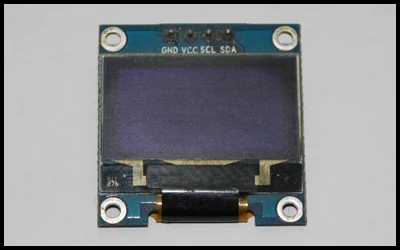

| Form Factor | Breakout Board (0.96 OLED) |
| Software Support | Arduino (Adafruit_SSD1306) |
| Current Draw | 20mA active |
