SN74HC32N

Technical datasheet, operating ranges, and workbench specifications for SN74HC32N manufactured by Texas Instruments.

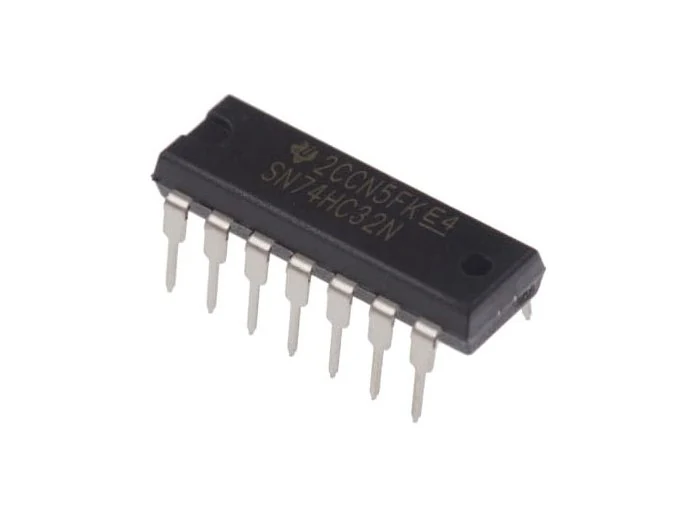

SN74HC32N component photo

Complete Component Specifications

CategoryLogic Gate
ManufacturerTexas Instruments
Voltage Min2.0
Voltage Max6.0
Logic LevelCMOS
Pins14
InterfaceParallel
Form FactorDIP-14
Software SupportGeneric
Current Draw10uA typical
