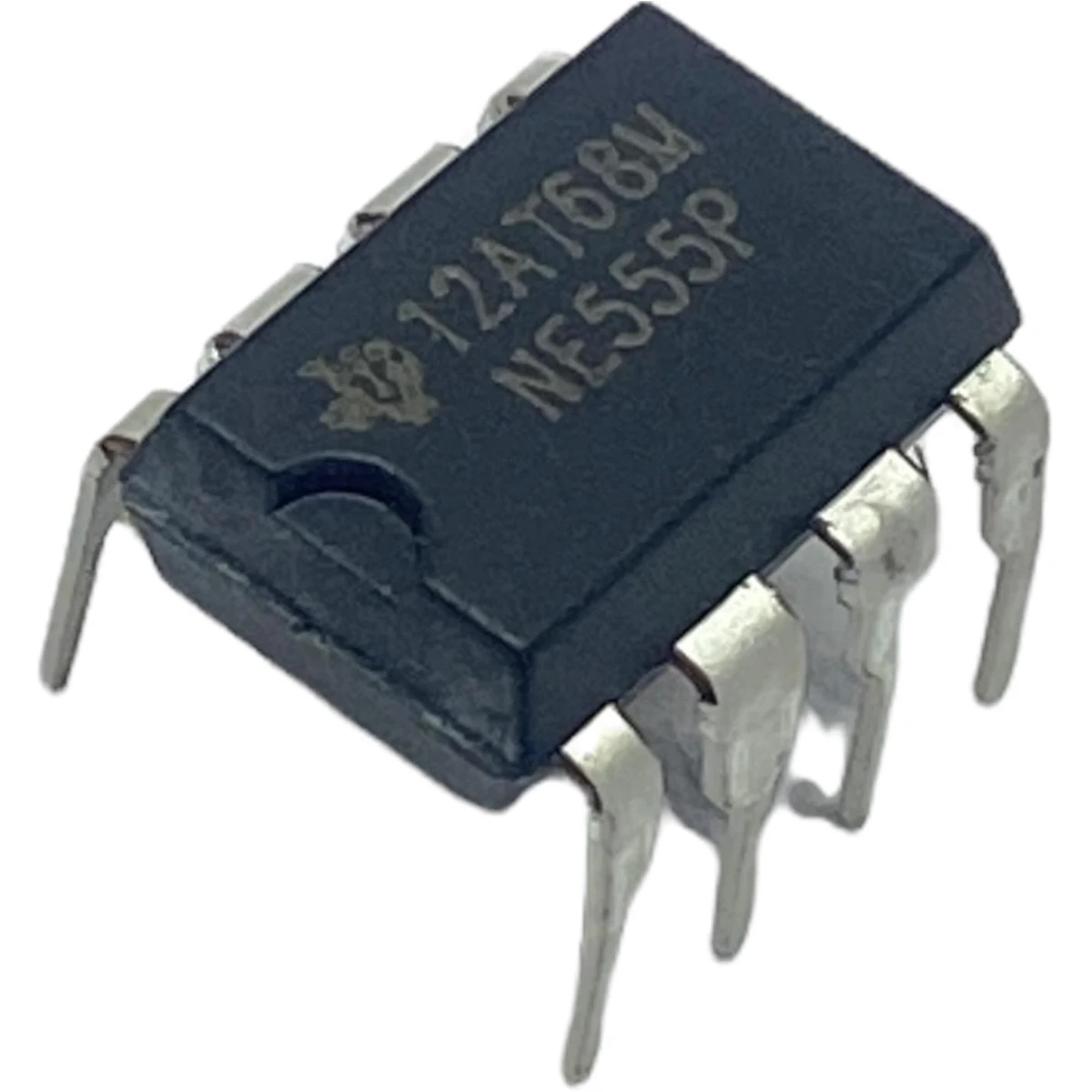

NE555P
Technical datasheet, operating ranges, and workbench specifications for NE555P manufactured by Texas Instruments.

Component image could not be loaded.
Complete Component Specifications
| Category | Precision Timer IC |
|---|---|
| Manufacturer | Texas Instruments |
| Voltage Min | 4.5 |
| Voltage Max | 16.0 |
| Logic Level | 5V - 15V |
| Pins | 8 |
| Interface | Analog Pulse / Oscillator |
| Form Factor | DIP-8 |
| Software Support | Analog / Hardware |
| Current Draw | 10mA active |
