Counter/Oscillator | Texas Instruments

CD4060BE

Technical datasheet, operating ranges, and workbench specifications for CD4060BE manufactured by Texas Instruments.

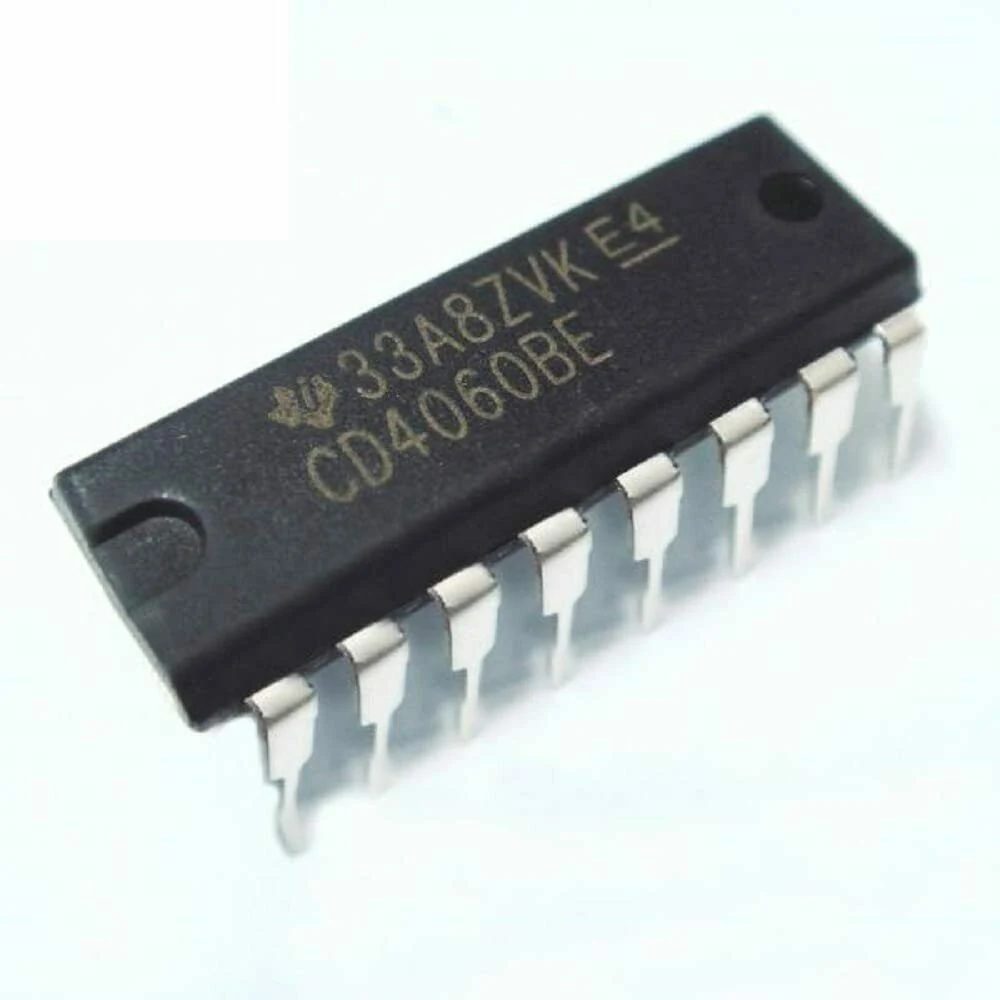

CD4060BE component photo

Complete Component Specifications

CategoryCounter/Oscillator
ManufacturerTexas Instruments
Voltage Min3.0
Voltage Max18.0
Logic LevelCMOS
Pins16
InterfaceClock
Form FactorDIP-16
Software SupportGeneric
Current Draw10uA typical
