Boost/Buck-Boost Regulator | XLSEMI

XL6009

Technical datasheet, operating ranges, and workbench specifications for XL6009 manufactured by XLSEMI.

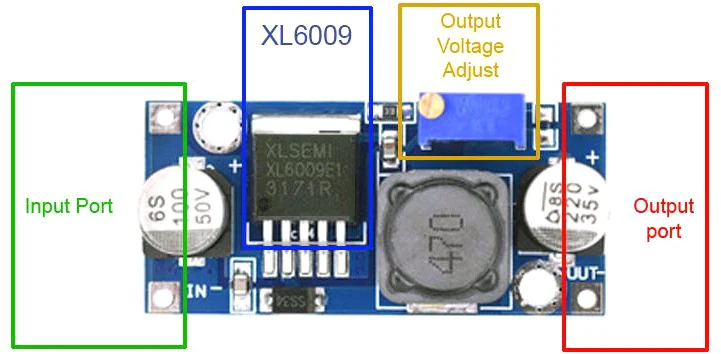

XL6009 component photo

Complete Component Specifications

CategoryBoost/Buck-Boost Regulator
ManufacturerXLSEMI
Voltage Min5
Voltage Max32
Logic LevelAdjustable
Pins5
InterfaceBoost/Buck-Boost
Form FactorTO-263
Software SupportArduino/power
Current Draw~2 mA quiescent
