Addressable RGB LED | Worldsemi

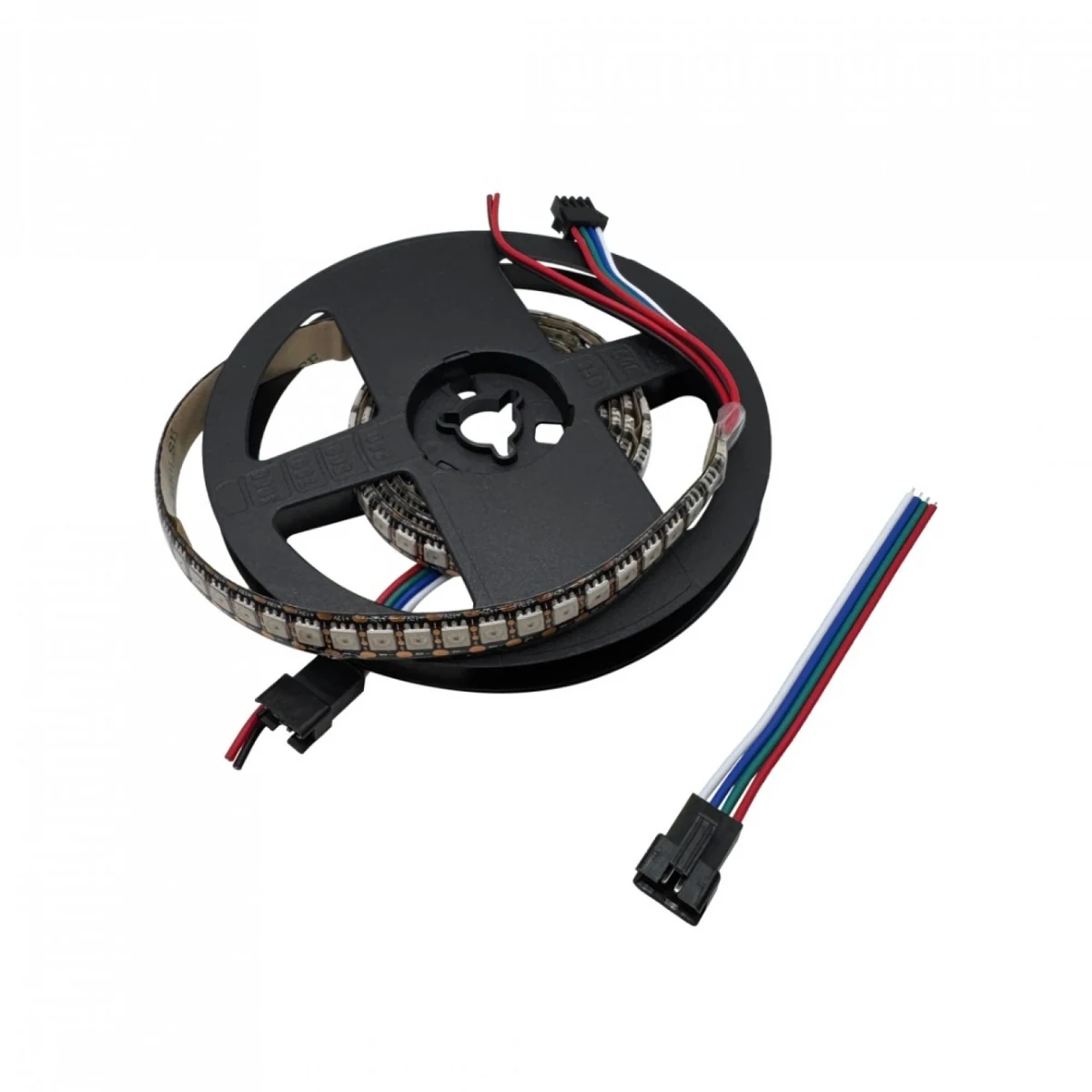

WS2815B
Technical datasheet, operating ranges, and workbench specifications for WS2815B manufactured by Worldsemi.
Image could not be loaded.Image could not be loaded.Technical datasheet, operating ranges, and workbench specifications for WS2815B manufactured by Worldsemi.
Image could not be loaded.| Category | Addressable RGB LED |
|---|---|
| Manufacturer | Worldsemi |
| Voltage Min | 12.0 |
| Voltage Max | 13.5 |
| Logic Level | 5V data |
| Pins | 4 |
| Interface | Single-wire |
| Form Factor | 5050 SMD |
| Software Support | FastLED/Adafruit_NeoPixel |
| Current Draw | 60mA max/LED |
These are unverified user contributions, separate from the manufacturer specifications above. Check the official datasheet before relying on technical advice.
