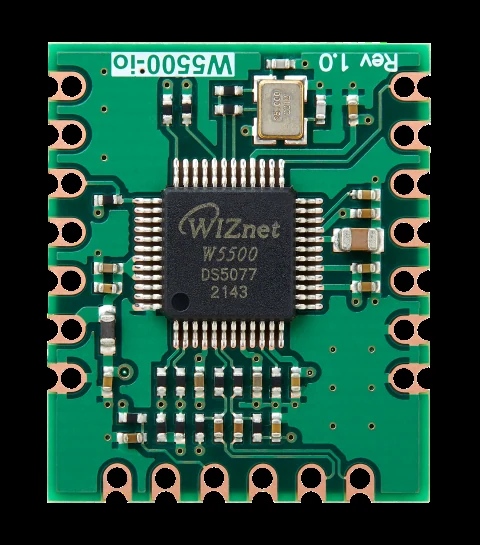

W5500
Technical datasheet, operating ranges, and workbench specifications for W5500 manufactured by WIZnet.
Image could not be loaded.Image could not be loaded.Technical datasheet, operating ranges, and workbench specifications for W5500 manufactured by WIZnet.
Image could not be loaded.| Category | Ethernet Controller |
|---|---|
| Manufacturer | WIZnet |
| Voltage Min | 2.97 |
| Voltage Max | 3.63 |
| Logic Level | 3.3V |
| Pins | 48 |
| Interface | SPI |
| Form Factor | LQFP-48 |
| Software Support | Arduino/ESP32/Linux |
| Current Draw | ~132 mA link-up |
These are unverified user contributions, separate from the manufacturer specifications above. Check the official datasheet before relying on technical advice.
