Darlington Driver | Texas Instruments

ULN2003ADR

Technical datasheet, operating ranges, and workbench specifications for ULN2003ADR manufactured by Texas Instruments.

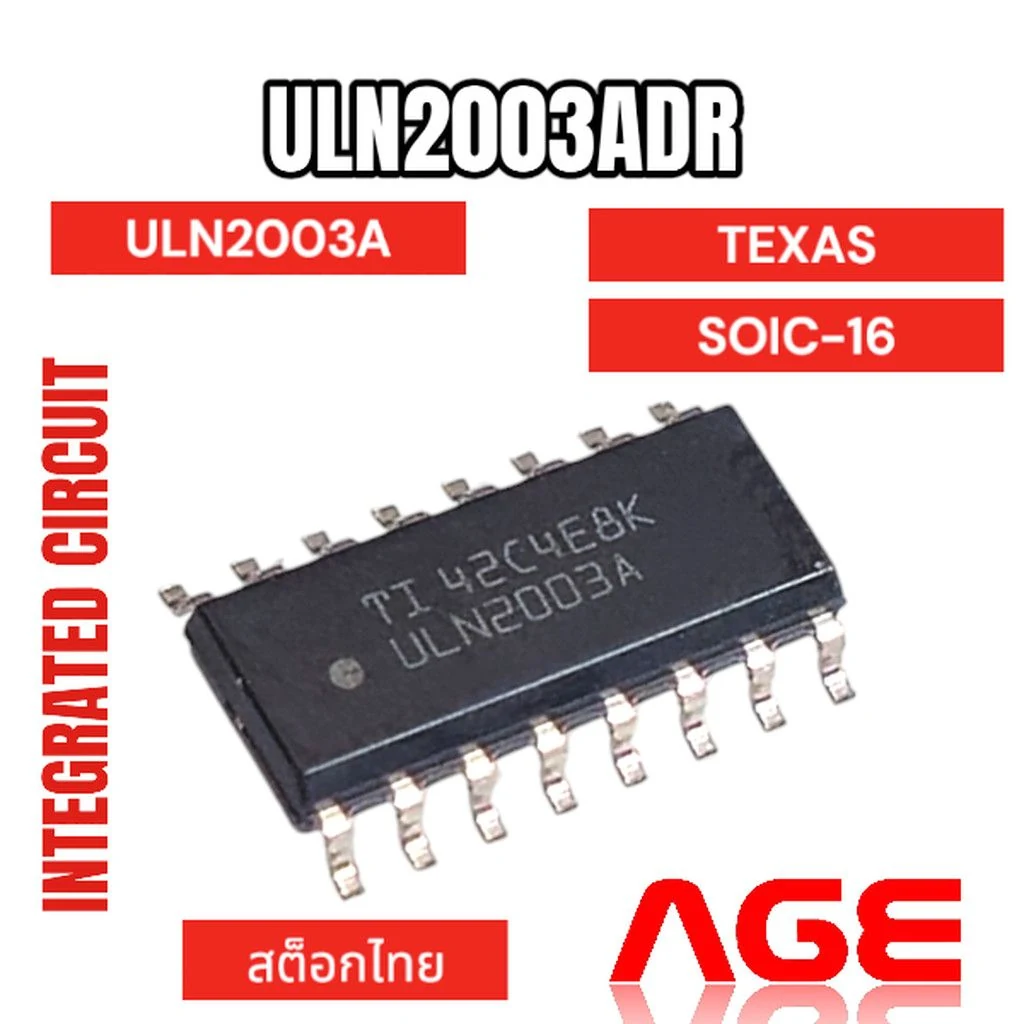

ULN2003ADR component photo

Complete Component Specifications

CategoryDarlington Driver
ManufacturerTexas Instruments
Voltage Min5.0
Voltage Max50.0
Logic LevelTTL
Pins16
InterfaceParallel
Form FactorSOIC-16
Software SupportArduino/Linux
Current Draw2.7mA typical
