Buck-Boost Regulator | Texas Instruments

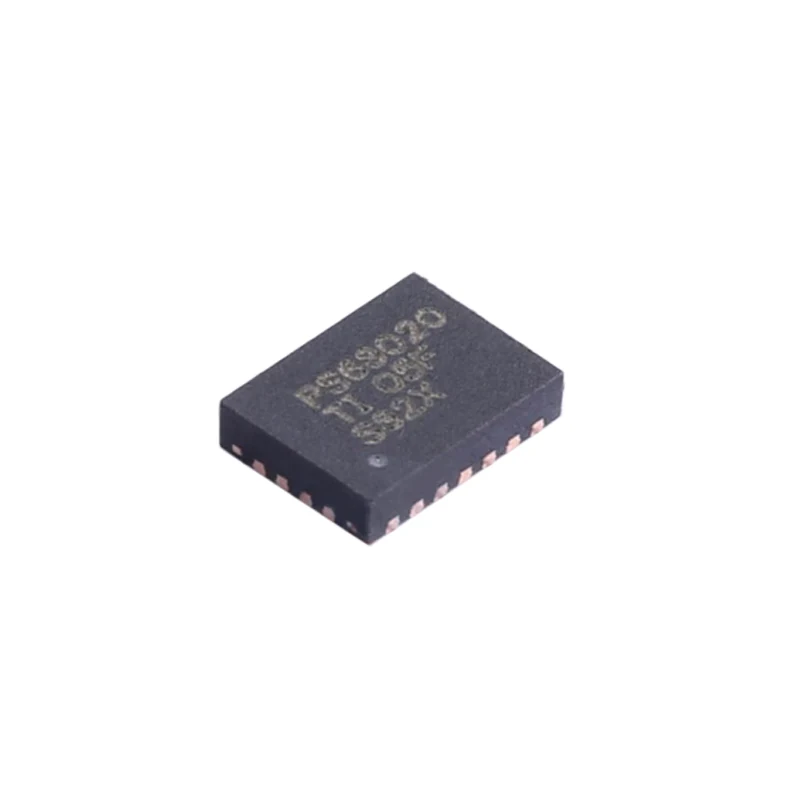

TPS63020DSJR
Technical datasheet, operating ranges, and workbench specifications for TPS63020DSJR manufactured by Texas Instruments.

Component image could not be loaded.
Complete Component Specifications
| Category | Buck-Boost Regulator |
|---|---|
| Manufacturer | Texas Instruments |
| Voltage Min | 2.5 |
| Voltage Max | 5.5 |
| Logic Level | Adjustable |
| Pins | 14 |
| Interface | Buck-Boost |
| Form Factor | WQFN-14 |
| Software Support | Arduino/ESP32 |
| Current Draw | ~50 uA quiescent |
