Buck Regulator | Texas Instruments

TPS54202DDCR

Technical datasheet, operating ranges, and workbench specifications for TPS54202DDCR manufactured by Texas Instruments.

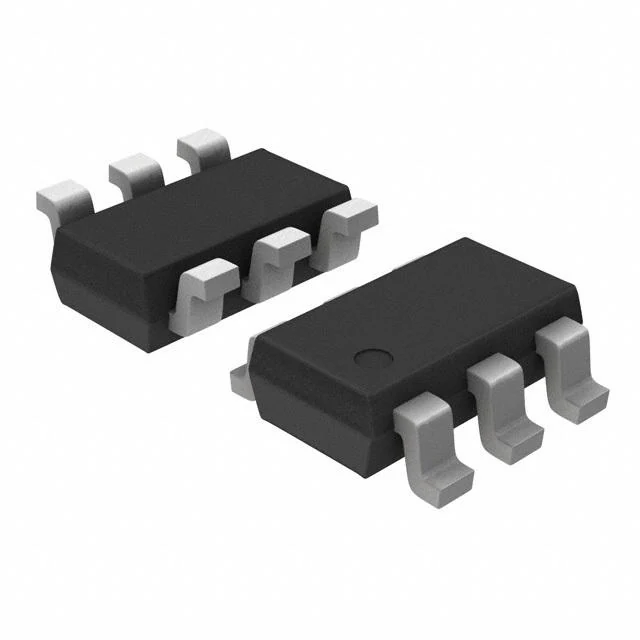

TPS54202DDCR component photo

Complete Component Specifications

CategoryBuck Regulator
ManufacturerTexas Instruments
Voltage Min4.5
Voltage Max28
Logic LevelN/A
Pins6
InterfacePower
Form FactorSOT-23-6
Software SupportN/A
Current Draw~50 uA quiescent
