Load Switch | Texas Instruments

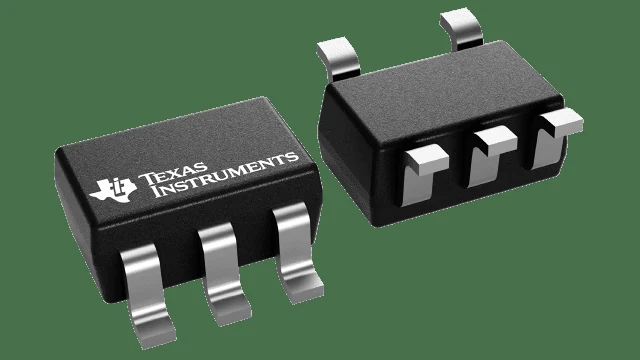

TPS22945DCKR
Technical datasheet, operating ranges, and workbench specifications for TPS22945DCKR manufactured by Texas Instruments.
Image could not be loaded.Image could not be loaded.Technical datasheet, operating ranges, and workbench specifications for TPS22945DCKR manufactured by Texas Instruments.
Image could not be loaded.| Category | Load Switch |
|---|---|
| Manufacturer | Texas Instruments |
| Voltage Min | 2.7 |
| Voltage Max | 5.5 |
| Logic Level | GPIO |
| Pins | 6 |
| Interface | High-side switch |
| Form Factor | SOT-23-6 |
| Software Support | Arduino/ESP32 |
| Current Draw | ~25 uA quiescent |
These are unverified user contributions, separate from the manufacturer specifications above. Check the official datasheet before relying on technical advice.
