Optocoupler | Toshiba

TLP291-4

Technical datasheet, operating ranges, and workbench specifications for TLP291-4 manufactured by Toshiba.

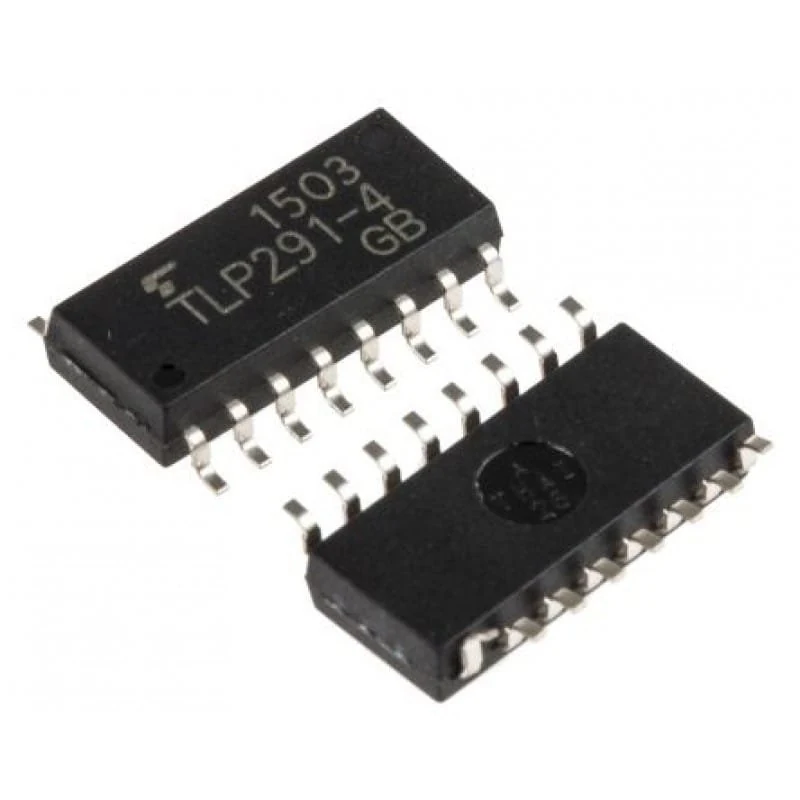

TLP291-4 component photo

Complete Component Specifications

CategoryOptocoupler
ManufacturerToshiba
Voltage Min0
Voltage Max30
Logic LevelTransistor output
Pins16
InterfaceOptocoupler
Form FactorSOIC-16
Software SupportArduino/ESP32
Current Draw~5 mA LED test
