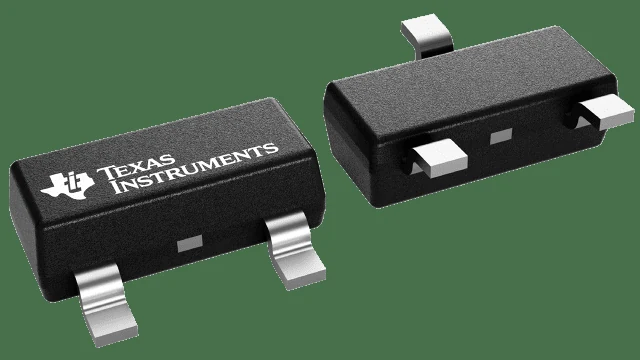

TL431AIDBZR
Technical datasheet, operating ranges, and workbench specifications for TL431AIDBZR manufactured by Texas Instruments.

Component image could not be loaded.
Complete Component Specifications
| Category | Voltage Reference |
|---|---|
| Manufacturer | Texas Instruments |
| Voltage Min | 2.495 |
| Voltage Max | 36.0 |
| Logic Level | Adjustable |
| Pins | 3 |
| Interface | Reference |
| Form Factor | SOT-23-3 |
| Software Support | Generic |
| Current Draw | 1mA typical |
