Darlington NPN | STMicroelectronics

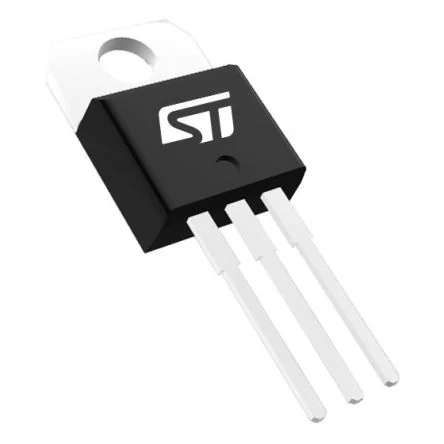

TIP120
Technical datasheet, operating ranges, and workbench specifications for TIP120 manufactured by STMicroelectronics.
Image could not be loaded.Image could not be loaded.Technical datasheet, operating ranges, and workbench specifications for TIP120 manufactured by STMicroelectronics.
Image could not be loaded.| Category | Darlington NPN |
|---|---|
| Manufacturer | STMicroelectronics |
| Voltage Min | 0 |
| Voltage Max | 60 |
| Logic Level | N/A |
| Pins | 3 |
| Interface | Power/GPIO |
| Form Factor | TO-220 |
| Software Support | N/A |
| Current Draw | ~5 mA base drive |
These are unverified user contributions, separate from the manufacturer specifications above. Check the official datasheet before relying on technical advice.
