GPIO Expander | Texas Instruments

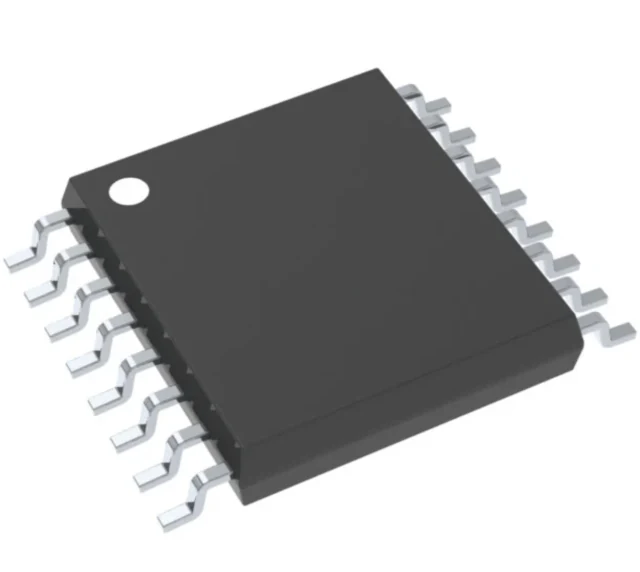

TCA9534APWR
Technical datasheet, operating ranges, and workbench specifications for TCA9534APWR manufactured by Texas Instruments.
Image could not be loaded.Image could not be loaded.Technical datasheet, operating ranges, and workbench specifications for TCA9534APWR manufactured by Texas Instruments.
Image could not be loaded.| Category | GPIO Expander |
|---|---|
| Manufacturer | Texas Instruments |
| Voltage Min | 1.65 |
| Voltage Max | 5.5 |
| Logic Level | 1.8-5V |
| Pins | 16 |
| Interface | I2C |
| Form Factor | TSSOP-16 |
| Software Support | Arduino/Linux |
| Current Draw | 1mA typical |
These are unverified user contributions, separate from the manufacturer specifications above. Check the official datasheet before relying on technical advice.
