ST7789V2
Technical datasheet, operating ranges, and workbench specifications for ST7789V2 manufactured by Sitronix.

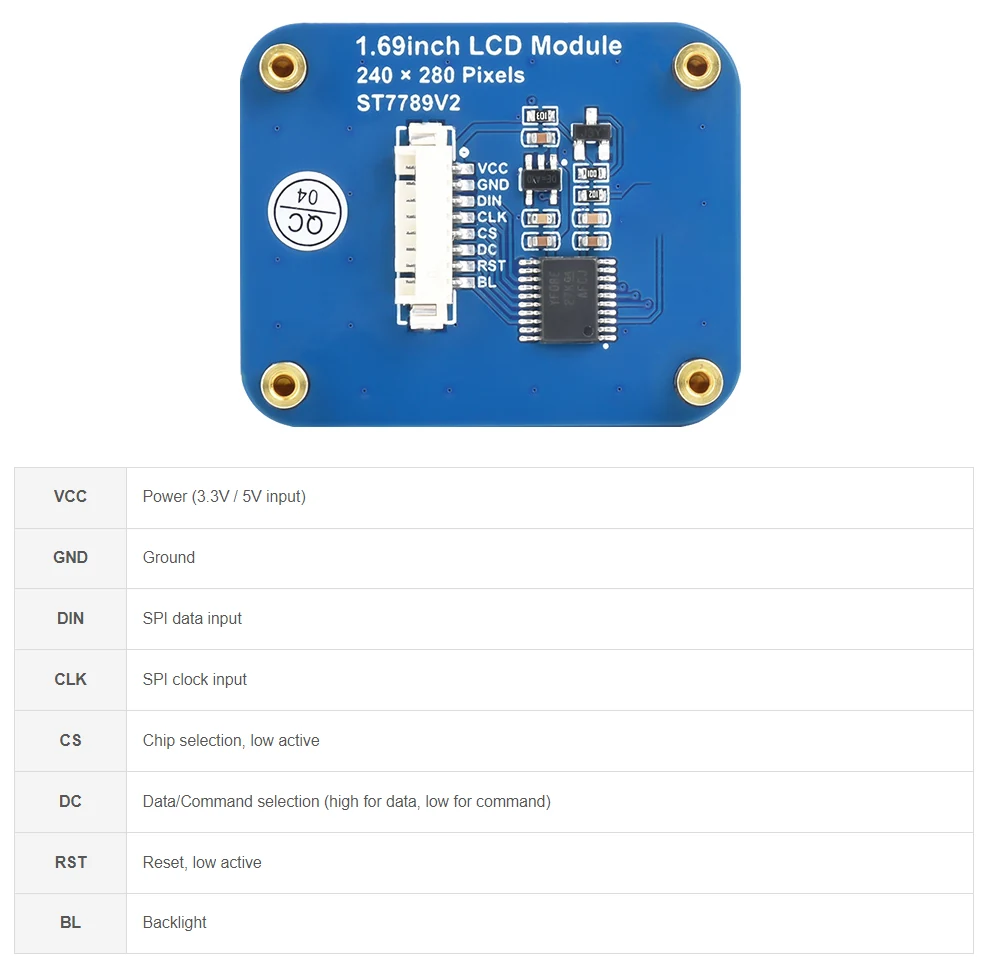

Image could not be loaded.Image could not be loaded.Technical datasheet, operating ranges, and workbench specifications for ST7789V2 manufactured by Sitronix.
Image could not be loaded.| Category | Display Controller |
|---|---|
| Manufacturer | Sitronix |
| Voltage Min | 2.4 |
| Voltage Max | 3.6 |
| Logic Level | 3.3V |
| Pins | 18 |
| Interface | SPI |
| Form Factor | QFN/COG |
| Software Support | Arduino/Linux |
| Current Draw | 6mA typical |
