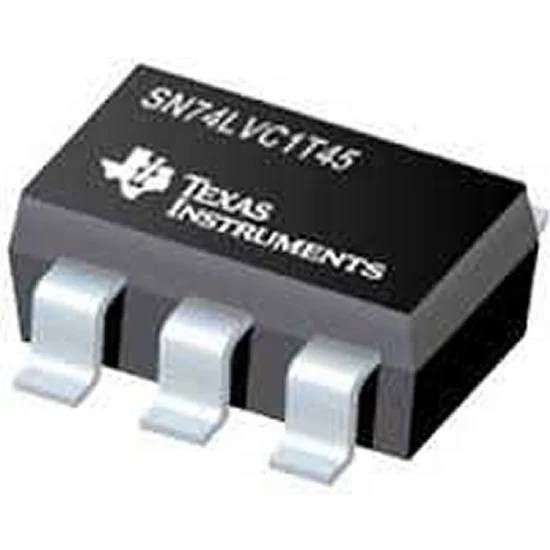

SN74LVC1T45DBVR
Technical datasheet, operating ranges, and workbench specifications for SN74LVC1T45DBVR manufactured by Texas Instruments.
Image could not be loaded.Image could not be loaded.Technical datasheet, operating ranges, and workbench specifications for SN74LVC1T45DBVR manufactured by Texas Instruments.
Image could not be loaded.| Category | Logic Level Translator |
|---|---|
| Manufacturer | Texas Instruments |
| Voltage Min | 1.65 |
| Voltage Max | 5.5 |
| Logic Level | Dual-supply |
| Pins | 6 |
| Interface | Bidirectional GPIO |
| Form Factor | SOT-23-6 |
| Software Support | Arduino;ESP32;STM32 |
| Current Draw | <10 uA |
