SN74HCT00N

Technical datasheet, operating ranges, and workbench specifications for SN74HCT00N manufactured by Texas Instruments.

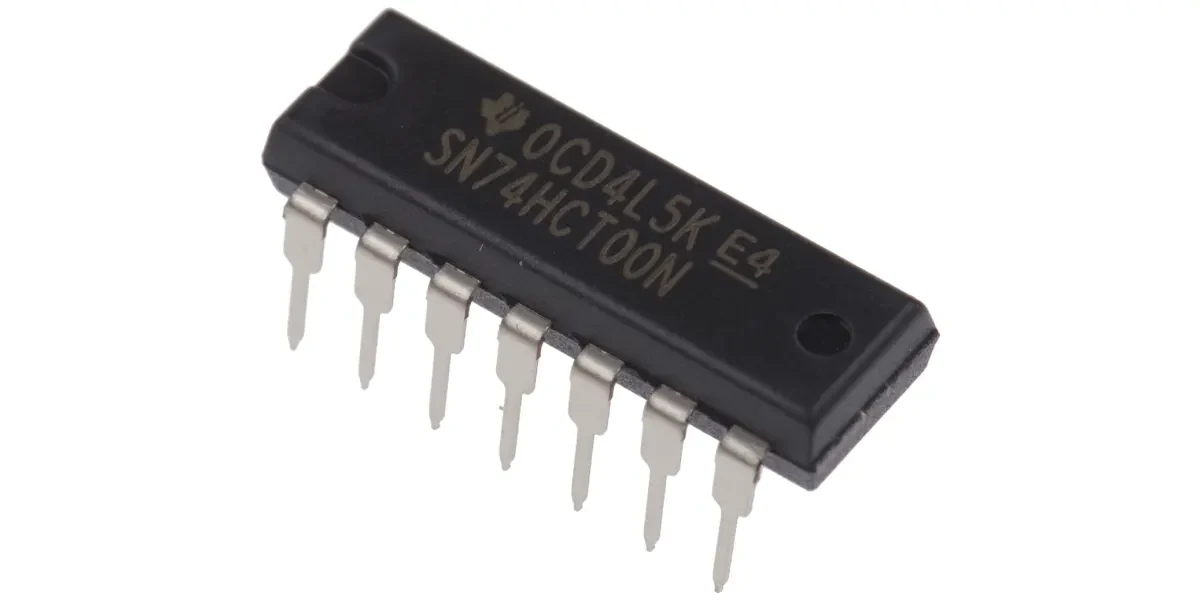

SN74HCT00N component photo

Complete Component Specifications

CategoryLogic Gate
ManufacturerTexas Instruments
Voltage Min4.5
Voltage Max5.5
Logic Level5V HCT
Pins14
InterfaceParallel
Form FactorPDIP-14
Software SupportGeneric
Current Draw10uA typical
