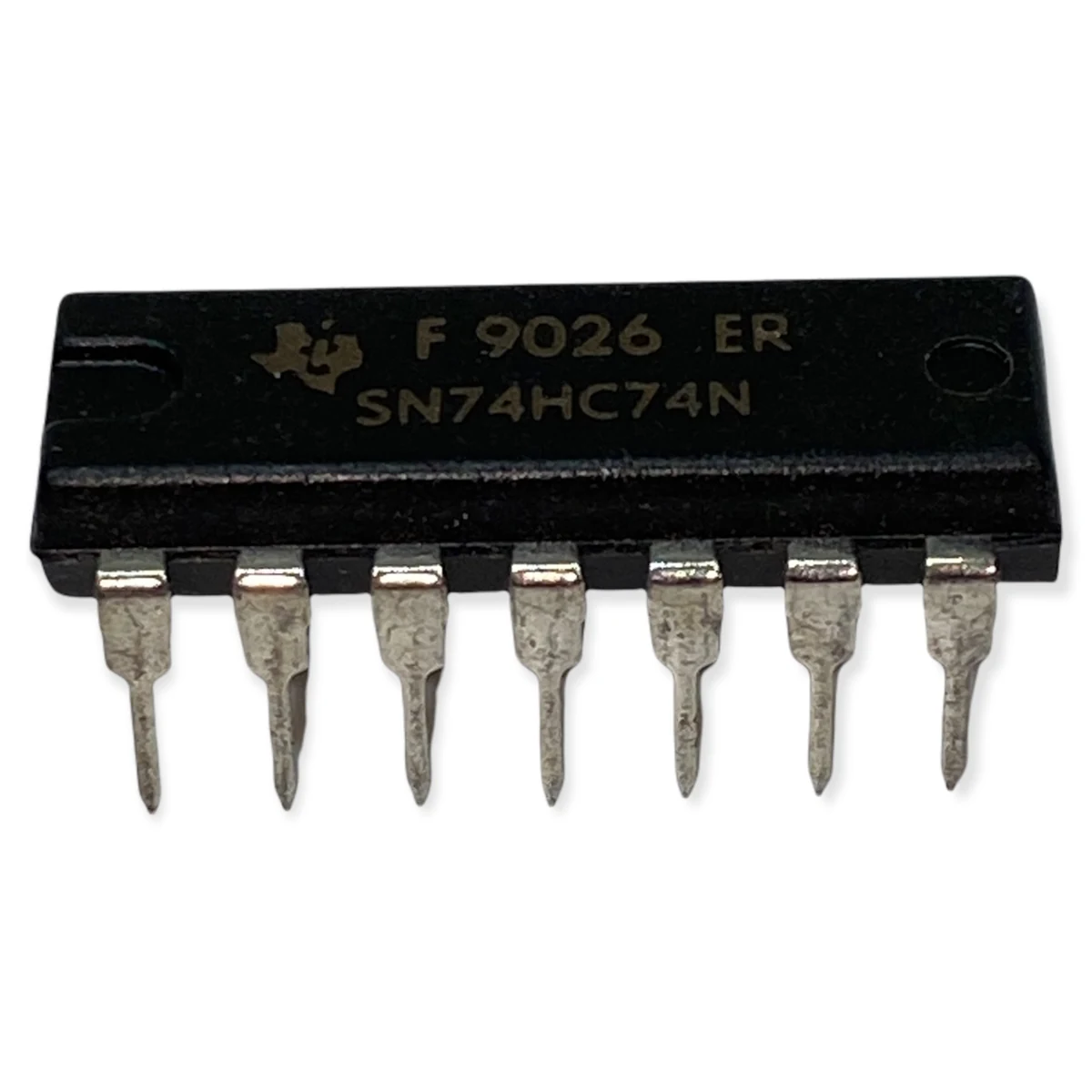

SN74HC74N
Technical datasheet, operating ranges, and workbench specifications for SN74HC74N manufactured by Texas Instruments.
Image could not be loaded.Image could not be loaded.Technical datasheet, operating ranges, and workbench specifications for SN74HC74N manufactured by Texas Instruments.
Image could not be loaded.| Category | Flip-Flop |
|---|---|
| Manufacturer | Texas Instruments |
| Voltage Min | 2.0 |
| Voltage Max | 6.0 |
| Logic Level | CMOS |
| Pins | 14 |
| Interface | Parallel |
| Form Factor | PDIP-14 |
| Software Support | Generic |
| Current Draw | 10uA typical |
These are unverified user contributions, separate from the manufacturer specifications above. Check the official datasheet before relying on technical advice.
