Shift Register | Texas Instruments

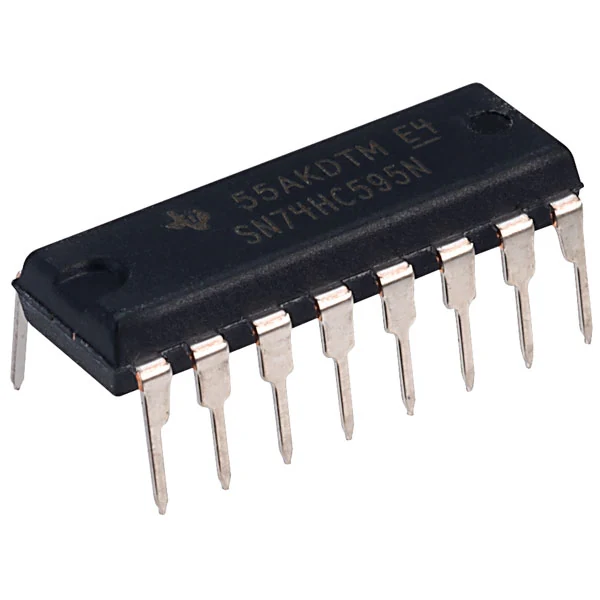

SN74HC595N
Technical datasheet, operating ranges, and workbench specifications for SN74HC595N manufactured by Texas Instruments.

Component image could not be loaded.
Complete Component Specifications
| Category | Shift Register |
|---|---|
| Manufacturer | Texas Instruments |
| Voltage Min | 2.0 |
| Voltage Max | 6.0 |
| Logic Level | CMOS |
| Pins | 16 |
| Interface | SPI-like |
| Form Factor | DIP-16 |
| Software Support | Arduino/Linux |
| Current Draw | 80uA typical |
