SN74HC4051N

Technical datasheet, operating ranges, and workbench specifications for SN74HC4051N manufactured by Texas Instruments.

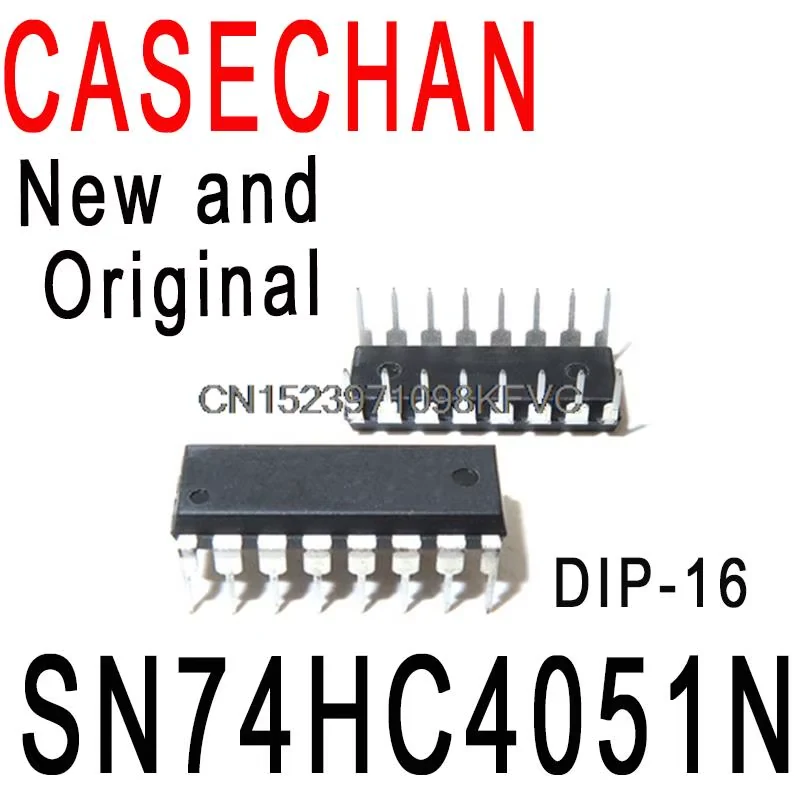

SN74HC4051N component photo

Complete Component Specifications

CategoryAnalog Multiplexer
ManufacturerTexas Instruments
Voltage Min2
Voltage Max6
Logic LevelCMOS
Pins16
InterfaceAnalog Mux
Form FactorPDIP-16
Software SupportN/A
Current Draw~0.1 uA
