SN74HC14N

Technical datasheet, operating ranges, and workbench specifications for SN74HC14N manufactured by Texas Instruments.

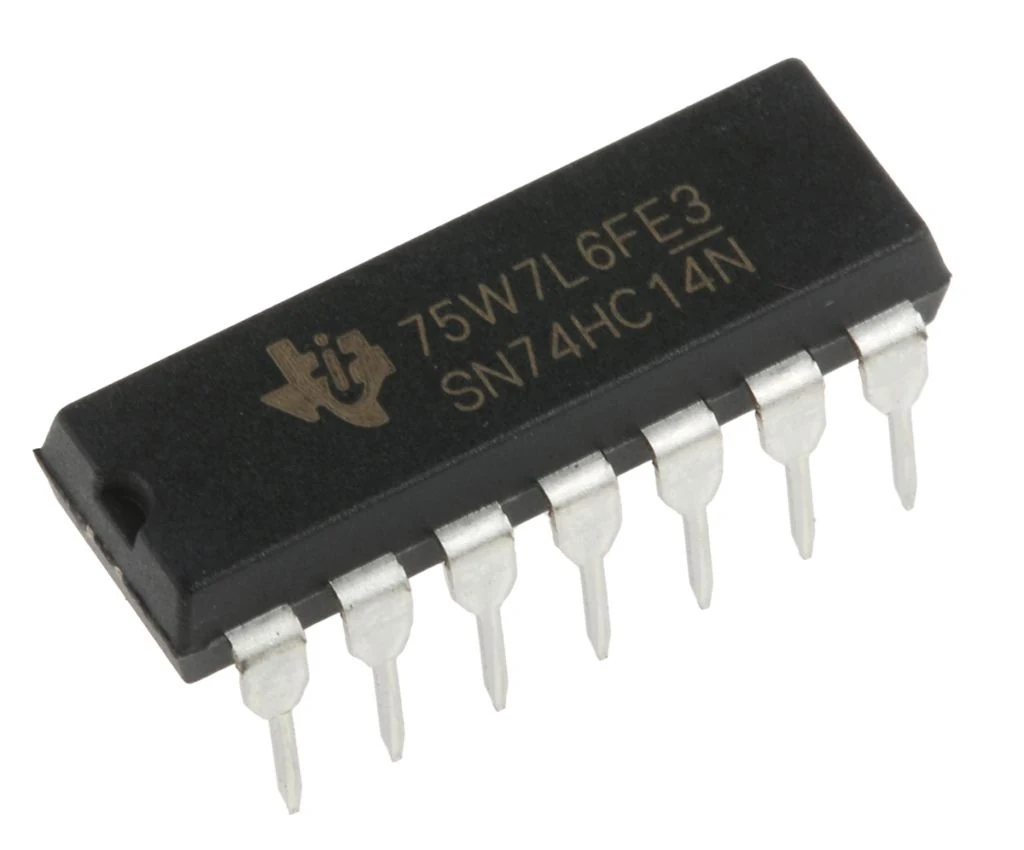

SN74HC14N component photo

Complete Component Specifications

CategorySchmitt Trigger
ManufacturerTexas Instruments
Voltage Min2.0
Voltage Max6.0
Logic LevelCMOS
Pins14
InterfaceParallel
Form FactorPDIP-14
Software SupportGeneric
Current Draw10uA typical
