Logic Decoder | Texas Instruments

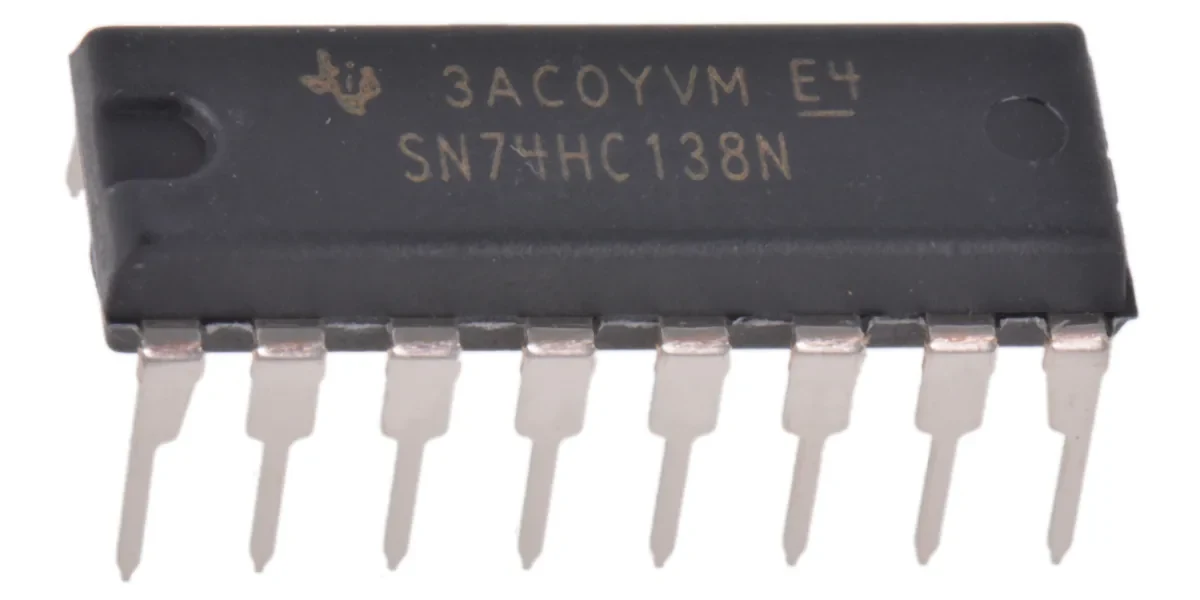

SN74HC138N
Technical datasheet, operating ranges, and workbench specifications for SN74HC138N manufactured by Texas Instruments.

Component image could not be loaded.
Complete Component Specifications
| Category | Logic Decoder |
|---|---|
| Manufacturer | Texas Instruments |
| Voltage Min | 2.0 |
| Voltage Max | 6.0 |
| Logic Level | CMOS |
| Pins | 16 |
| Interface | Parallel |
| Form Factor | DIP-16 |
| Software Support | Generic |
| Current Draw | 10uA typical |
