SN74HC04N
Technical datasheet, operating ranges, and workbench specifications for SN74HC04N manufactured by Texas Instruments.

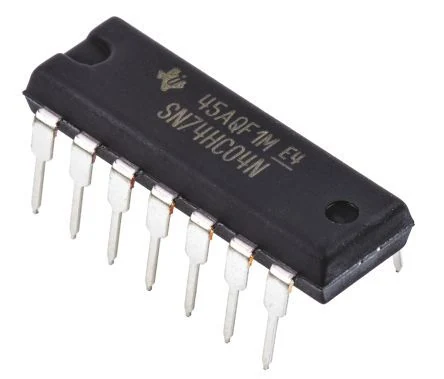

Image could not be loaded.Image could not be loaded.Technical datasheet, operating ranges, and workbench specifications for SN74HC04N manufactured by Texas Instruments.
Image could not be loaded.| Category | Logic Gate |
|---|---|
| Manufacturer | Texas Instruments |
| Voltage Min | 2.0 |
| Voltage Max | 6.0 |
| Logic Level | CMOS |
| Pins | 14 |
| Interface | Parallel |
| Form Factor | DIP-14 |
| Software Support | Generic |
| Current Draw | 10uA typical |
