TVS Diode | Littelfuse

SMBJ12A

Technical datasheet, operating ranges, and workbench specifications for SMBJ12A manufactured by Littelfuse.

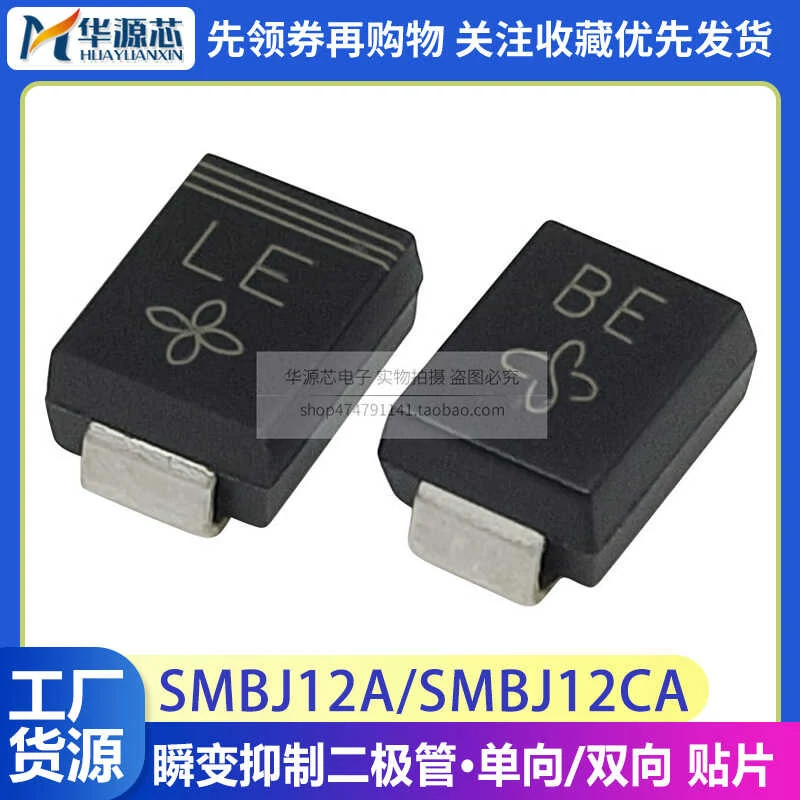

SMBJ12A component photo

Complete Component Specifications

CategoryTVS Diode
ManufacturerLittelfuse
Voltage Min0.0
Voltage Max12.0
Pins2
InterfaceProtection
Form FactorDO-214AA
Software SupportGeneric
Current Draw1uA leakage
