Voltage Reference | Texas Instruments

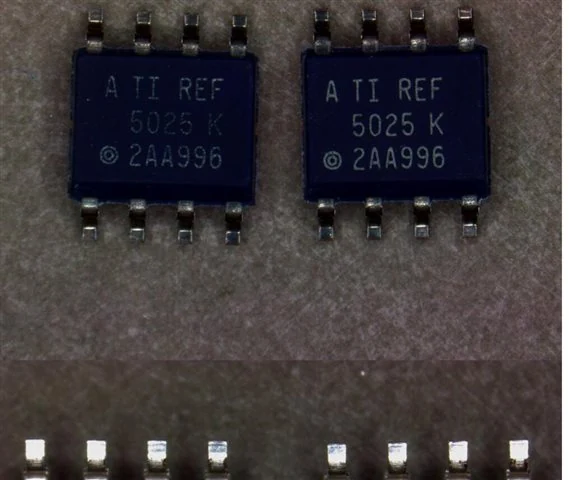

REF5025AIDR
Technical datasheet, operating ranges, and workbench specifications for REF5025AIDR manufactured by Texas Instruments.
Image could not be loaded.Image could not be loaded.Technical datasheet, operating ranges, and workbench specifications for REF5025AIDR manufactured by Texas Instruments.
Image could not be loaded.| Category | Voltage Reference |
|---|---|
| Manufacturer | Texas Instruments |
| Voltage Min | 2.7 |
| Voltage Max | 18.0 |
| Logic Level | 2.5V |
| Pins | 8 |
| Interface | Reference |
| Form Factor | SOIC-8 |
| Software Support | Generic |
| Current Draw | 1.6mA typical |
These are unverified user contributions, separate from the manufacturer specifications above. Check the official datasheet before relying on technical advice.
