Rotary Encoder | Bourns

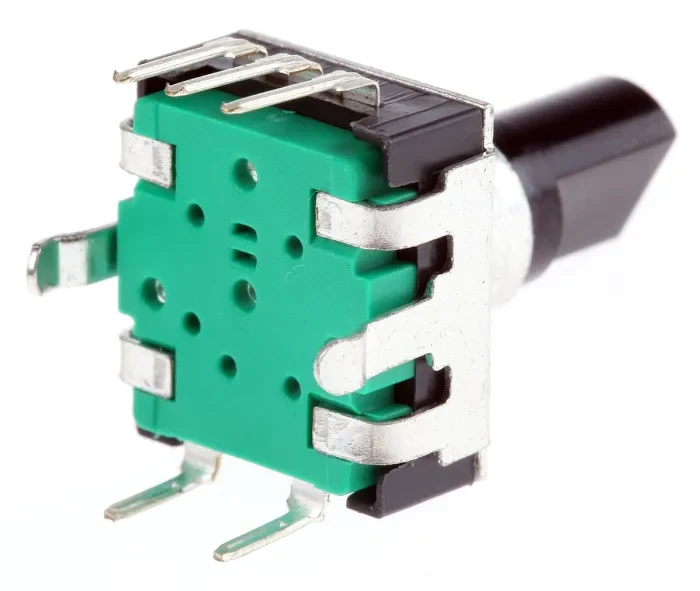

PEC12R-4220F-S0024
Technical datasheet, operating ranges, and workbench specifications for PEC12R-4220F-S0024 manufactured by Bourns.

Component image could not be loaded.
Complete Component Specifications
| Category | Rotary Encoder |
|---|---|
| Manufacturer | Bourns |
| Voltage Min | 0 |
| Voltage Max | 5 |
| Logic Level | Digital |
| Pins | 5 |
| Interface | Quadrature |
| Form Factor | Panel/Shaft |
| Software Support | Arduino/ESP32 |
| Current Draw | ~1 mA signal |
