GPIO Expander | NXP

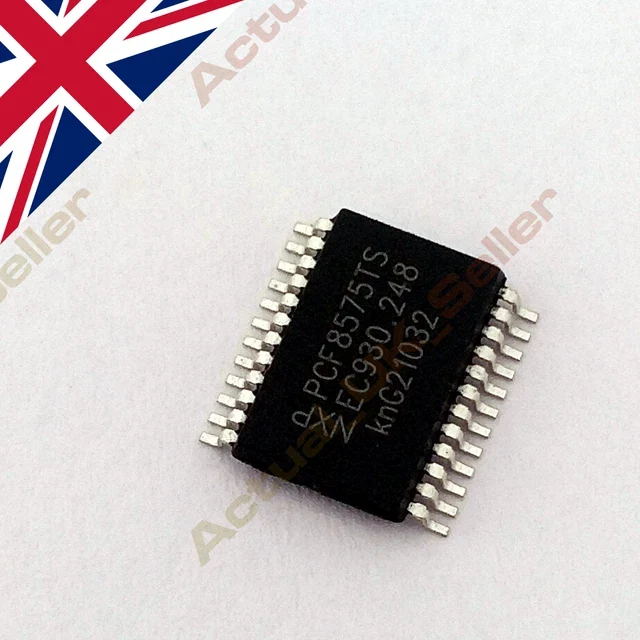

PCF8575PW
Technical datasheet, operating ranges, and workbench specifications for PCF8575PW manufactured by NXP.
Image could not be loaded.Image could not be loaded.Technical datasheet, operating ranges, and workbench specifications for PCF8575PW manufactured by NXP.
Image could not be loaded.| Category | GPIO Expander |
|---|---|
| Manufacturer | NXP |
| Voltage Min | 2.5 |
| Voltage Max | 6.0 |
| Logic Level | CMOS |
| Pins | 24 |
| Interface | I2C |
| Form Factor | TSSOP-24 |
| Software Support | Arduino/Linux |
| Current Draw | 2.5mA typical |
These are unverified user contributions, separate from the manufacturer specifications above. Check the official datasheet before relying on technical advice.
