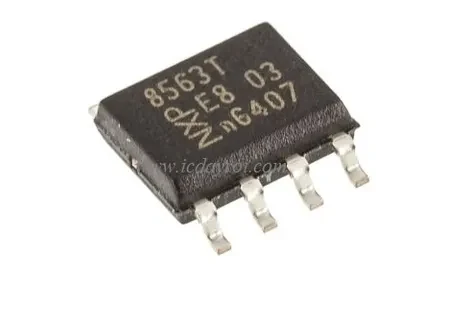

PCF8563T
Technical datasheet, operating ranges, and workbench specifications for PCF8563T manufactured by NXP.
Image could not be loaded.Image could not be loaded.Technical datasheet, operating ranges, and workbench specifications for PCF8563T manufactured by NXP.
Image could not be loaded.| Category | RTC |
|---|---|
| Manufacturer | NXP |
| Voltage Min | 1.0 |
| Voltage Max | 5.5 |
| Logic Level | I2C |
| Pins | 8 |
| Interface | I2C |
| Form Factor | SOIC-8 |
| Software Support | Arduino libraries |
| Current Draw | ~0.25 uA timekeeping |
These are unverified user contributions, separate from the manufacturer specifications above. Check the official datasheet before relying on technical advice.
