PCA9685PW
Technical datasheet, operating ranges, and workbench specifications for PCA9685PW manufactured by NXP.

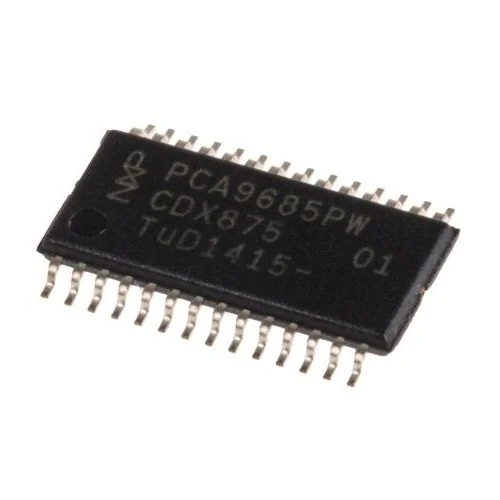

Component image could not be loaded.
Complete Component Specifications
| Category | PWM Driver |
|---|---|
| Manufacturer | NXP |
| Voltage Min | 2.3 |
| Voltage Max | 5.5 |
| Logic Level | 1.8-5V |
| Pins | 28 |
| Interface | I2C |
| Form Factor | TSSOP-28 |
| Software Support | Arduino/Linux |
| Current Draw | 10mA typical |
