LED PWM Driver | NXP

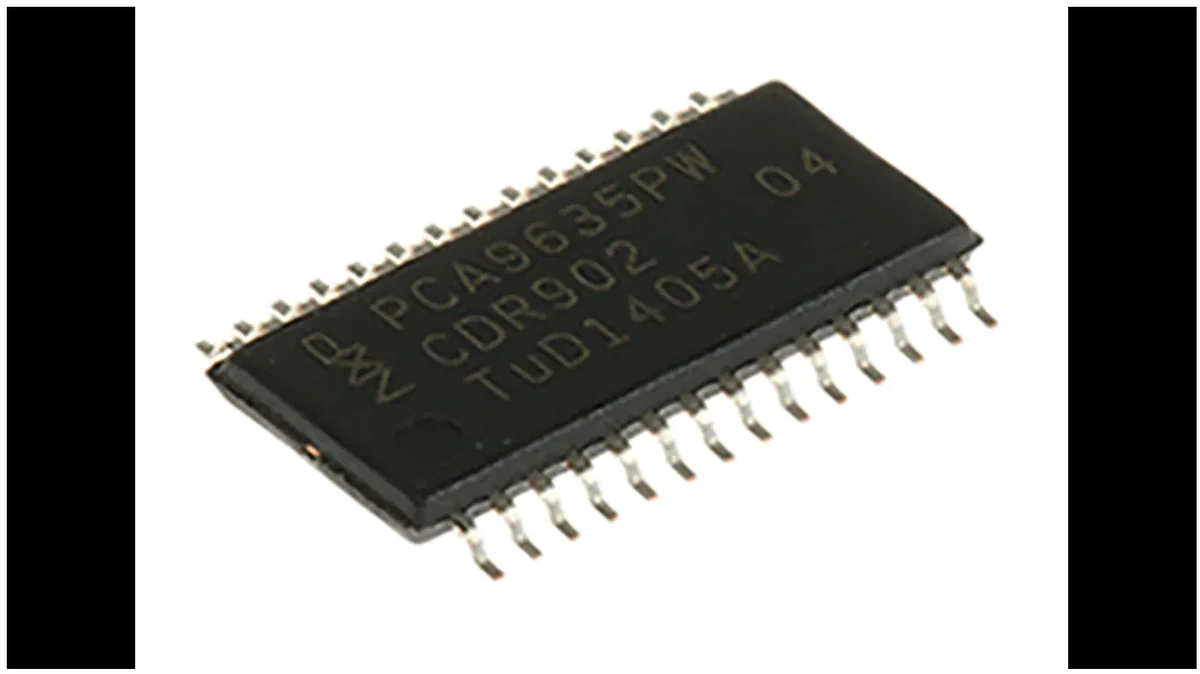

PCA9635PW
Technical datasheet, operating ranges, and workbench specifications for PCA9635PW manufactured by NXP.
Image could not be loaded.Image could not be loaded.Technical datasheet, operating ranges, and workbench specifications for PCA9635PW manufactured by NXP.
Image could not be loaded.| Category | LED PWM Driver |
|---|---|
| Manufacturer | NXP |
| Voltage Min | 2.3 |
| Voltage Max | 5.5 |
| Logic Level | 1.8-5V |
| Pins | 28 |
| Interface | I2C |
| Form Factor | TSSOP-28 |
| Software Support | Arduino/Linux |
| Current Draw | 2.5mA typical |
