Optocoupler | Sharp

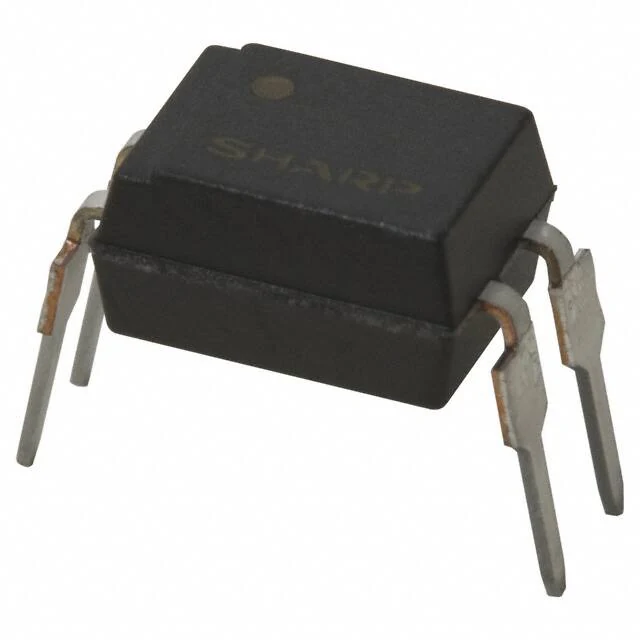

PC817X1NSZ
Technical datasheet, operating ranges, and workbench specifications for PC817X1NSZ manufactured by Sharp.
Image could not be loaded.Image could not be loaded.Technical datasheet, operating ranges, and workbench specifications for PC817X1NSZ manufactured by Sharp.
Image could not be loaded.| Category | Optocoupler |
|---|---|
| Manufacturer | Sharp |
| Voltage Min | 5.0 |
| Voltage Max | 30.0 |
| Logic Level | LED input |
| Pins | 4 |
| Interface | Optical |
| Form Factor | DIP-4 |
| Software Support | Generic |
| Current Draw | 5mA LED typical |
These are unverified user contributions, separate from the manufacturer specifications above. Check the official datasheet before relying on technical advice.
