Optocoupler | Sharp

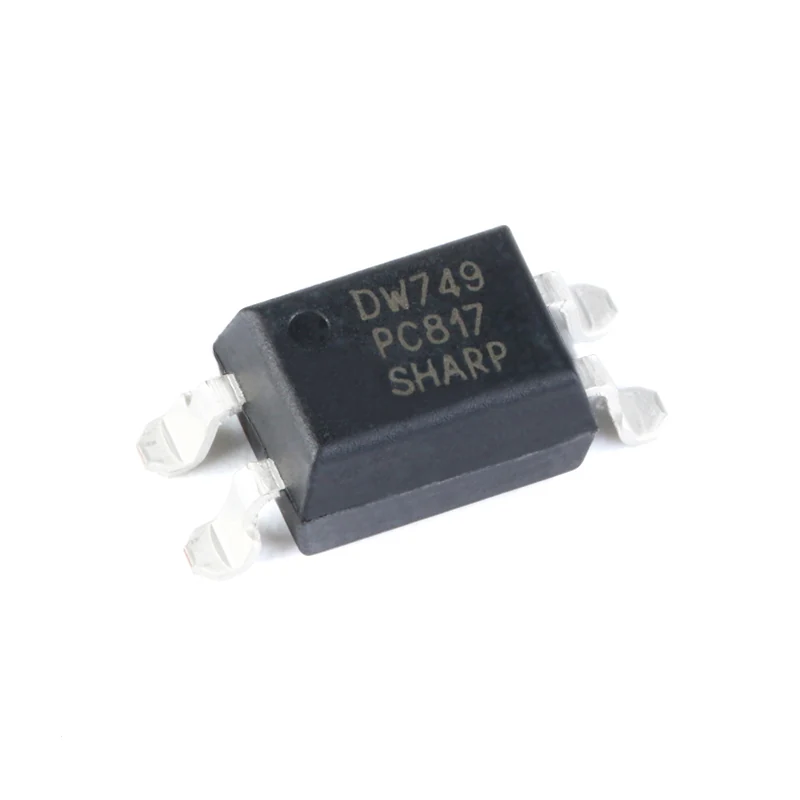

PC817X
Technical datasheet, operating ranges, and workbench specifications for PC817X manufactured by Sharp.

Component image could not be loaded.
Complete Component Specifications
| Category | Optocoupler |
|---|---|
| Manufacturer | Sharp |
| Voltage Min | 2.5 |
| Voltage Max | 30 |
| Logic Level | TTL-compatible output |
| Pins | 4 |
| Interface | Optocoupler |
| Form Factor | DIP-4 |
| Software Support | N/A |
| Current Draw | ~5 mA LED |
