ADC | Microchip

MCP3002-I/P

Technical datasheet, operating ranges, and workbench specifications for MCP3002-I/P manufactured by Microchip.

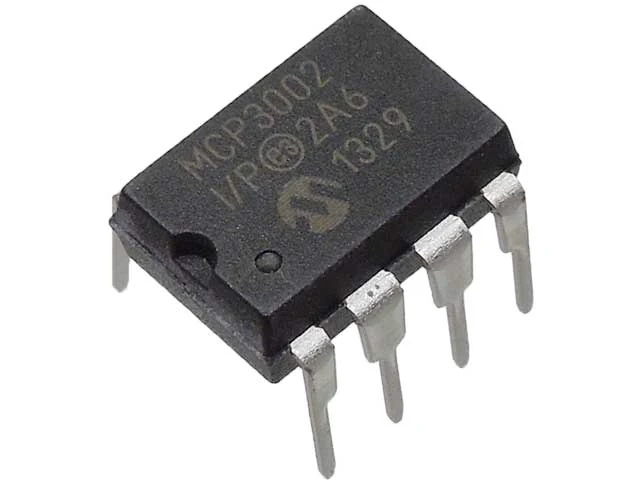

MCP3002-I/P component photo

Complete Component Specifications

CategoryADC
ManufacturerMicrochip
Voltage Min2.7
Voltage Max5.5
Logic Level2.7-5.5V
Pins8
InterfaceSPI
Form FactorDIP-8
Software SupportArduino/Linux
Current Draw550uA typical
