CAN Bus Controller | Microchip Technology

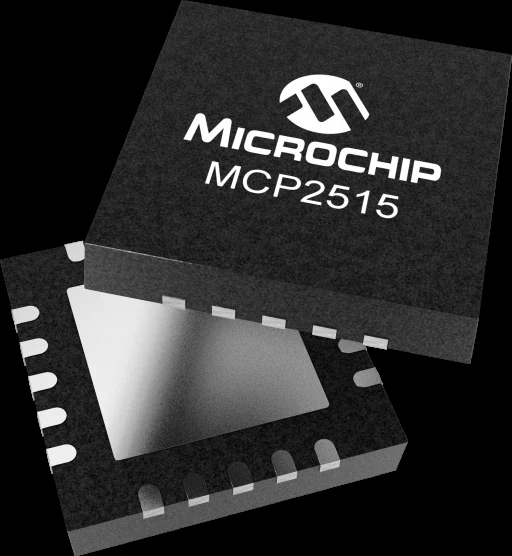

MCP2515
Technical datasheet, operating ranges, and workbench specifications for MCP2515 manufactured by Microchip Technology.

Component image could not be loaded.
Complete Component Specifications
| Category | CAN Bus Controller |
|---|---|
| Manufacturer | Microchip Technology |
| Voltage Min | 2.7 |
| Voltage Max | 5.5 |
| Logic Level | 5V / 3.3V |
| Pins | 18 |
| Interface | SPI to CAN |
| Form Factor | Breakout Board |
| Software Support | Arduino (mcp_can) |
| Current Draw | 5mA active |
