GPIO Expander | Microchip

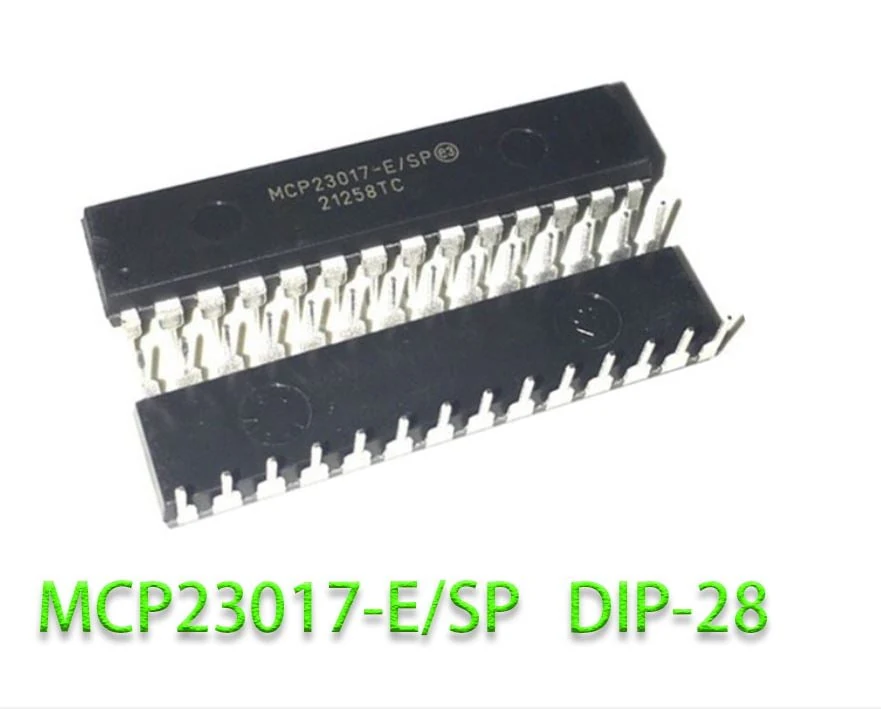

MCP23017-E/SP
Technical datasheet, operating ranges, and workbench specifications for MCP23017-E/SP manufactured by Microchip.
Image could not be loaded.Image could not be loaded.Technical datasheet, operating ranges, and workbench specifications for MCP23017-E/SP manufactured by Microchip.
Image could not be loaded.| Category | GPIO Expander |
|---|---|
| Manufacturer | Microchip |
| Voltage Min | 1.8 |
| Voltage Max | 5.5 |
| Logic Level | 1.8-5.5V |
| Pins | 28 |
| Interface | I2C |
| Form Factor | DIP-28 |
| Software Support | Arduino/Linux |
| Current Draw | 1mA typical |
These are unverified user contributions, separate from the manufacturer specifications above. Check the official datasheet before relying on technical advice.
