GPIO Expander | Microchip

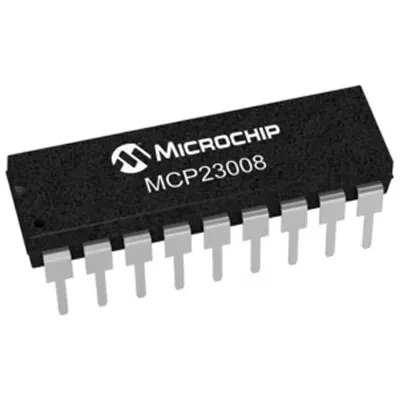

MCP23008-E/P
Technical datasheet, operating ranges, and workbench specifications for MCP23008-E/P manufactured by Microchip.
Image could not be loaded.Image could not be loaded.Technical datasheet, operating ranges, and workbench specifications for MCP23008-E/P manufactured by Microchip.
Image could not be loaded.| Category | GPIO Expander |
|---|---|
| Manufacturer | Microchip |
| Voltage Min | 1.8 |
| Voltage Max | 5.5 |
| Logic Level | I2C |
| Pins | 18 |
| Interface | I2C |
| Form Factor | PDIP-18 |
| Software Support | Arduino;MicroPython |
| Current Draw | <1 mA |
