MAX7221CWG+

Technical datasheet, operating ranges, and workbench specifications for MAX7221CWG+ manufactured by Analog Devices.

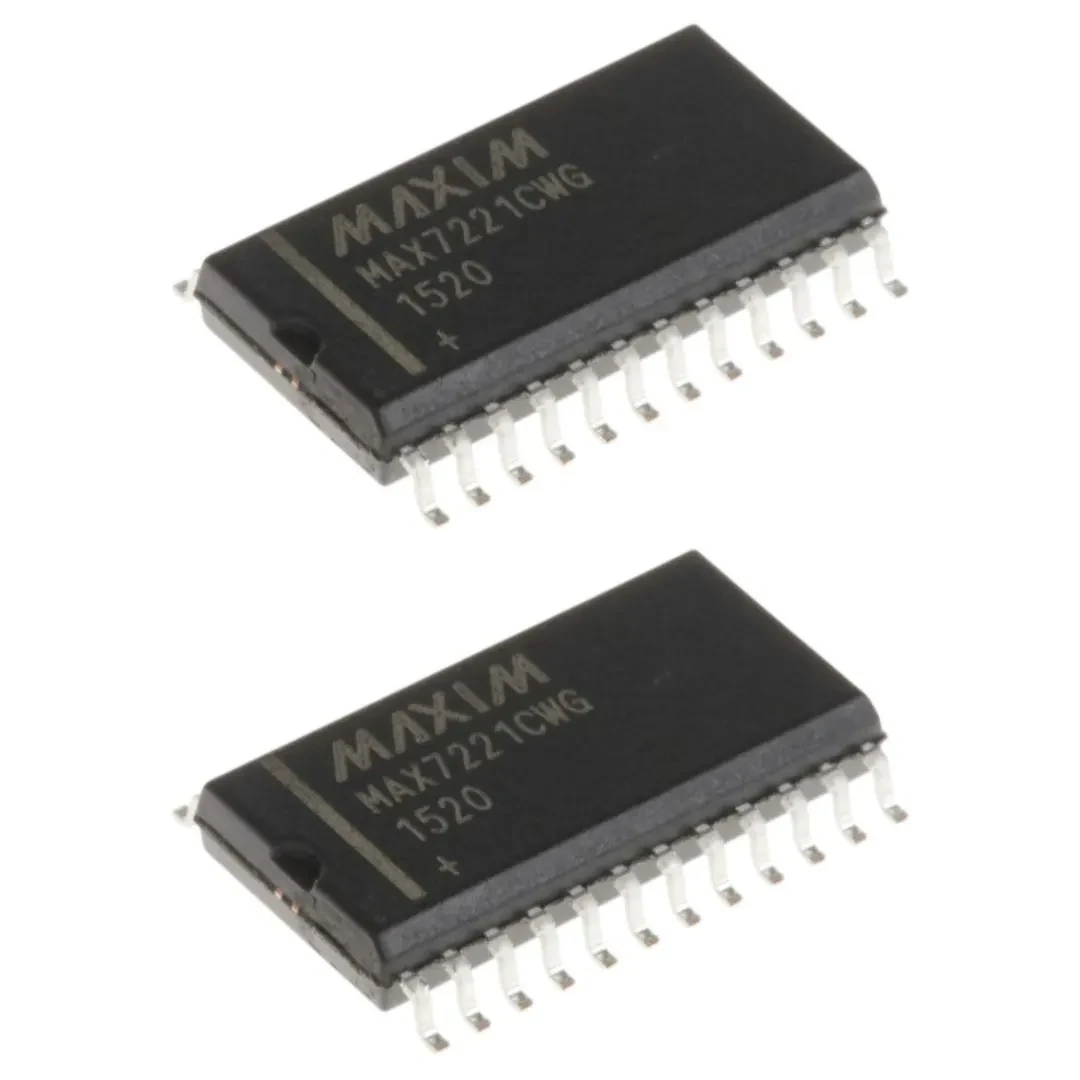

MAX7221CWG+ component photo

Complete Component Specifications

CategoryLED Display Driver
ManufacturerAnalog Devices
Voltage Min4.0
Voltage Max5.5
Logic Level5V
Pins24
InterfaceSPI-like
Form FactorSOIC-24
Software SupportArduino/Linux
Current Draw330uA shutdown
