RS-485 Transceiver | Analog Devices

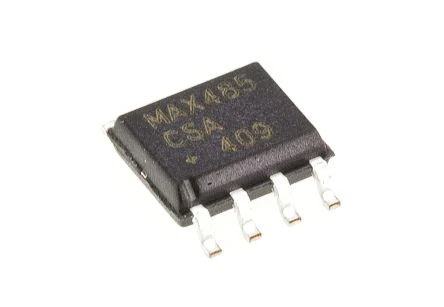

MAX485CSA+
Technical datasheet, operating ranges, and workbench specifications for MAX485CSA+ manufactured by Analog Devices.
Image could not be loaded.Image could not be loaded.Technical datasheet, operating ranges, and workbench specifications for MAX485CSA+ manufactured by Analog Devices.
Image could not be loaded.| Category | RS-485 Transceiver |
|---|---|
| Manufacturer | Analog Devices |
| Voltage Min | 4.75 |
| Voltage Max | 5.25 |
| Logic Level | TTL |
| Pins | 8 |
| Interface | RS-485 |
| Form Factor | SOIC-8 |
| Software Support | Arduino;STM32 |
| Current Draw | <1 mA |
These are unverified user contributions, separate from the manufacturer specifications above. Check the official datasheet before relying on technical advice.
