RS-485 Transceiver | Analog Devices

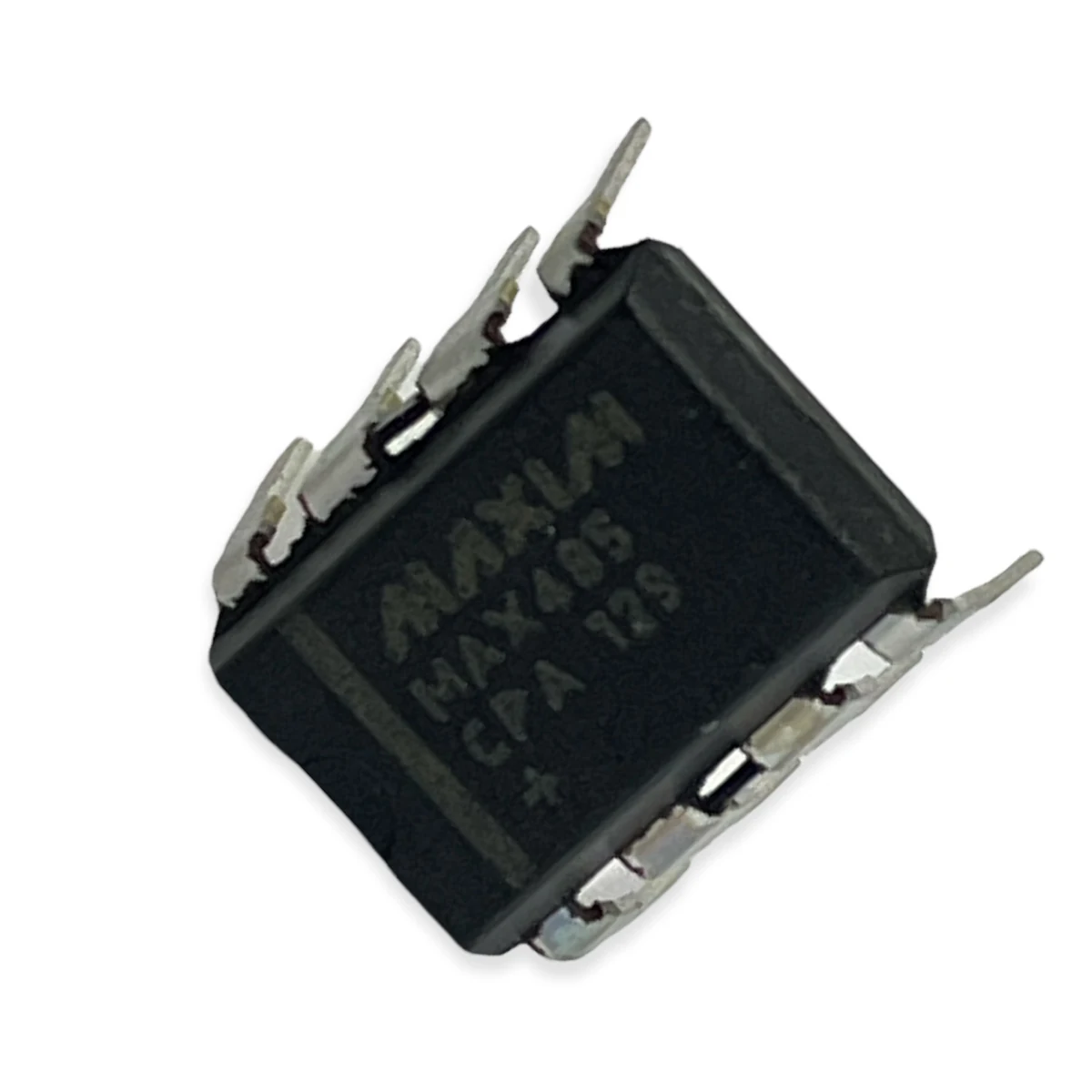

MAX485CPA+
Technical datasheet, operating ranges, and workbench specifications for MAX485CPA+ manufactured by Analog Devices.

Component image could not be loaded.
Complete Component Specifications
| Category | RS-485 Transceiver |
|---|---|
| Manufacturer | Analog Devices |
| Voltage Min | 4.75 |
| Voltage Max | 5.25 |
| Logic Level | TTL |
| Pins | 8 |
| Interface | RS-485 |
| Form Factor | DIP-8 |
| Software Support | Arduino/Linux |
| Current Draw | 120uA shutdown |
