RS-485 Transceiver | Analog Devices

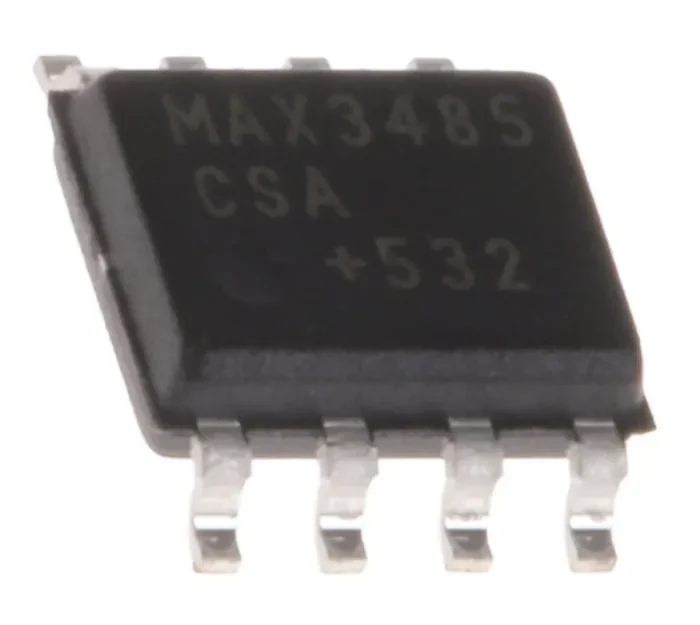

MAX3485CSA+
Technical datasheet, operating ranges, and workbench specifications for MAX3485CSA+ manufactured by Analog Devices.
Image could not be loaded.Image could not be loaded.Technical datasheet, operating ranges, and workbench specifications for MAX3485CSA+ manufactured by Analog Devices.
Image could not be loaded.| Category | RS-485 Transceiver |
|---|---|
| Manufacturer | Analog Devices |
| Voltage Min | 3.0 |
| Voltage Max | 3.6 |
| Logic Level | UART |
| Pins | 8 |
| Interface | RS-485 |
| Form Factor | SOIC-8 |
| Software Support | Arduino libraries |
| Current Draw | ~0.6 mA |
These are unverified user contributions, separate from the manufacturer specifications above. Check the official datasheet before relying on technical advice.
