RS-232 Transceiver | Analog Devices

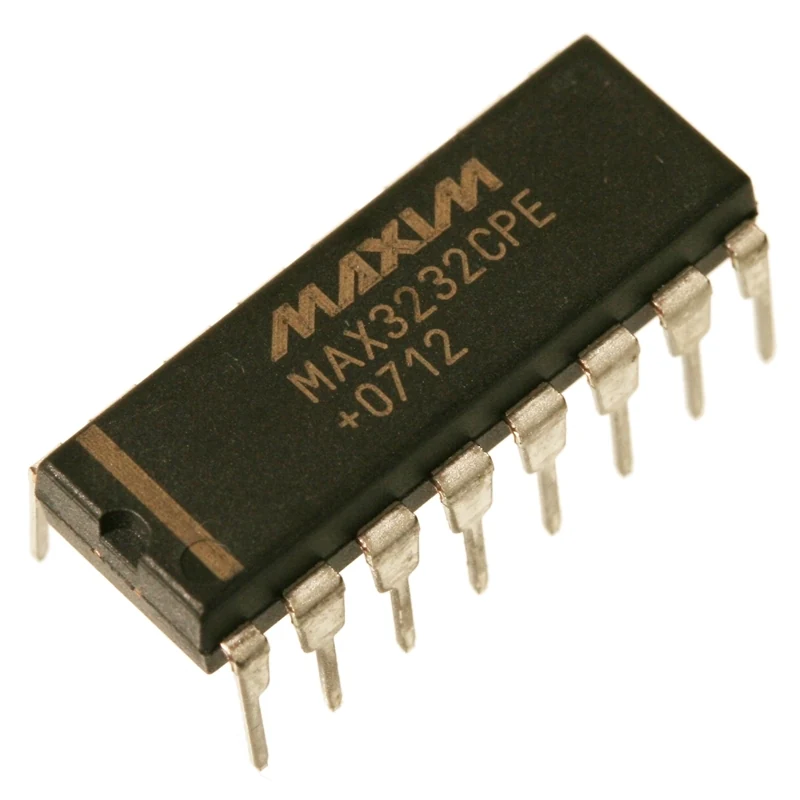

MAX3232CPE+
Technical datasheet, operating ranges, and workbench specifications for MAX3232CPE+ manufactured by Analog Devices.
Image could not be loaded.Image could not be loaded.Technical datasheet, operating ranges, and workbench specifications for MAX3232CPE+ manufactured by Analog Devices.
Image could not be loaded.| Category | RS-232 Transceiver |
|---|---|
| Manufacturer | Analog Devices |
| Voltage Min | 3.0 |
| Voltage Max | 5.5 |
| Logic Level | 3.3V/5V |
| Pins | 16 |
| Interface | RS-232 |
| Form Factor | PDIP-16 |
| Software Support | Arduino/Linux |
| Current Draw | 1mA typical |
These are unverified user contributions, separate from the manufacturer specifications above. Check the official datasheet before relying on technical advice.
