Addressable LED Driver | Worldsemi

LPD8806

Technical datasheet, operating ranges, and workbench specifications for LPD8806 manufactured by Worldsemi.

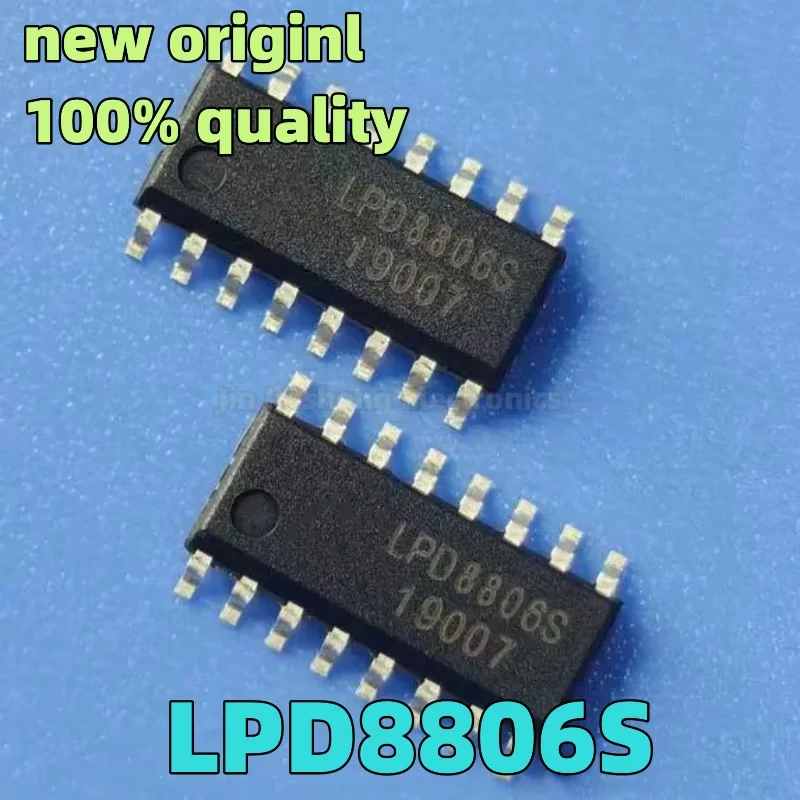

LPD8806 component photo

Complete Component Specifications

CategoryAddressable LED Driver
ManufacturerWorldsemi
Voltage Min2.7
Voltage Max5.5
Logic Level3.3-5V
Pins16
InterfaceSPI-like
Form FactorSMD
Software SupportArduino/FastLED
Current Draw5mA logic
