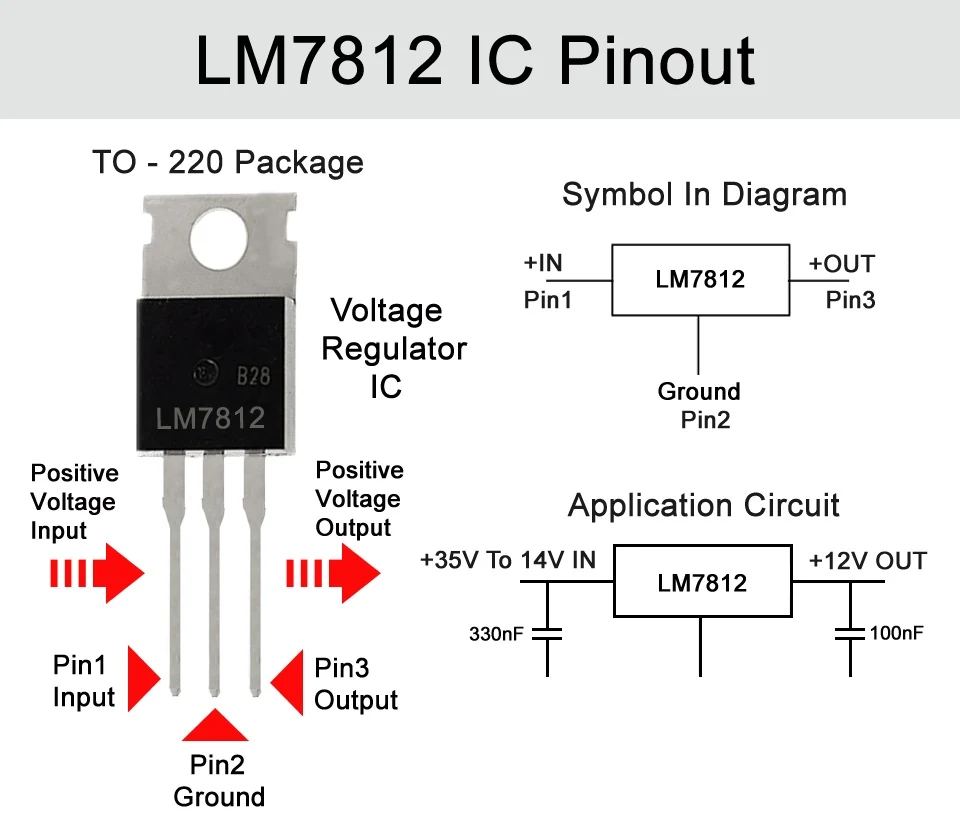

LM7812
Technical datasheet, operating ranges, and workbench specifications for LM7812 manufactured by Texas Instruments.
No local component image available yet.
Complete Component Specifications
| Category | Linear Regulator |
|---|---|
| Manufacturer | Texas Instruments |
| Voltage Min | 14.5 |
| Voltage Max | 35 |
| Logic Level | N/A |
| Pins | 3 |
| Interface | Power |
| Form Factor | TO-220 |
| Software Support | N/A |
| Current Draw | ~5 mA quiescent |
