Linear Regulator | Texas Instruments
LM7809

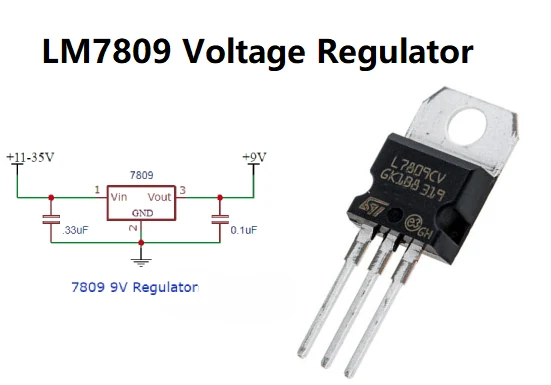

Technical datasheet, operating ranges, and workbench specifications for LM7809 manufactured by Texas Instruments.
Image could not be loaded.Image could not be loaded.Technical datasheet, operating ranges, and workbench specifications for LM7809 manufactured by Texas Instruments.
Image could not be loaded.| Category | Linear Regulator |
|---|---|
| Manufacturer | Texas Instruments |
| Voltage Min | 11.5 |
| Voltage Max | 35 |
| Logic Level | N/A |
| Pins | 3 |
| Interface | Power |
| Form Factor | TO-220 |
| Software Support | N/A |
| Current Draw | ~5 mA quiescent |
