Comparator | Texas Instruments

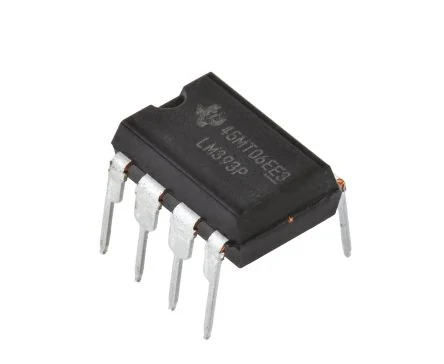

LM393P
Technical datasheet, operating ranges, and workbench specifications for LM393P manufactured by Texas Instruments.

Component image could not be loaded.
Complete Component Specifications
| Category | Comparator |
|---|---|
| Manufacturer | Texas Instruments |
| Voltage Min | 2.0 |
| Voltage Max | 36.0 |
| Logic Level | TTL-compatible |
| Pins | 8 |
| Interface | Analog |
| Form Factor | DIP-8 |
| Software Support | Generic |
| Current Draw | 0.8mA typical |
