Audio Amplifier | Texas Instruments

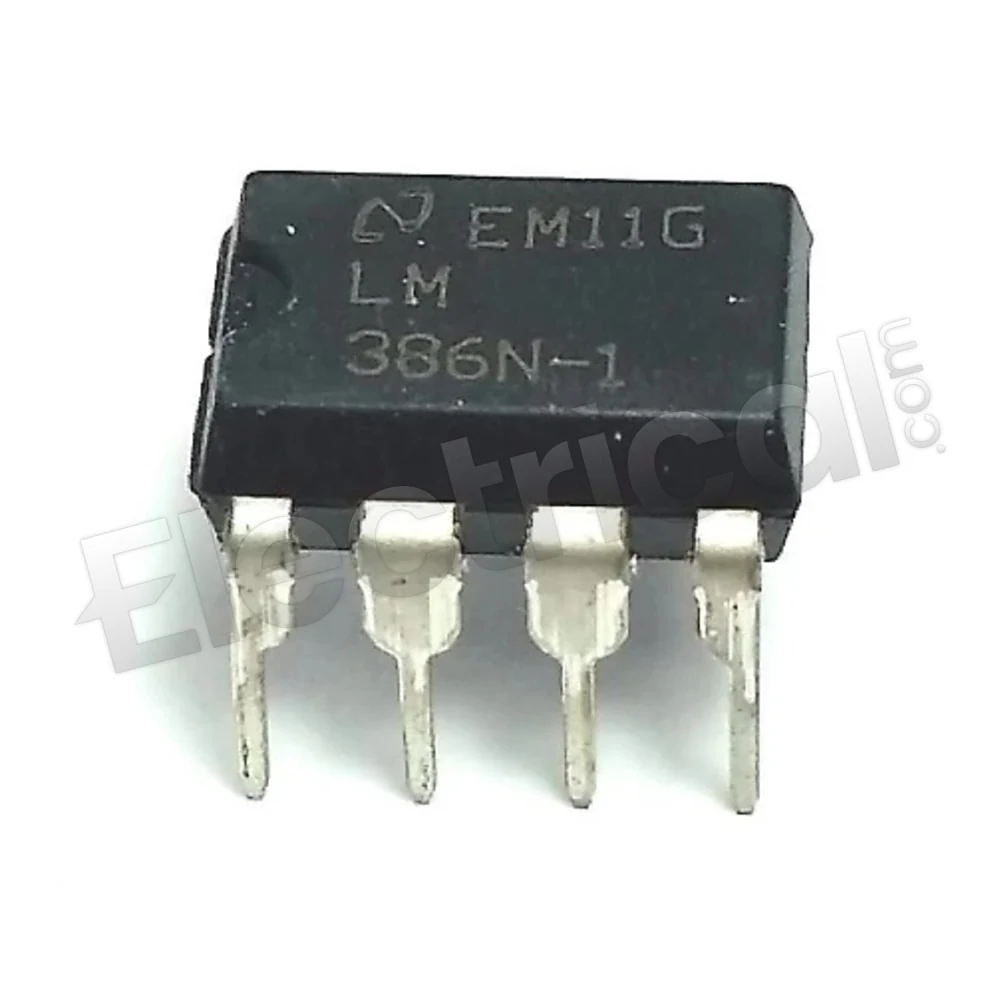

LM386N-1
Technical datasheet, operating ranges, and workbench specifications for LM386N-1 manufactured by Texas Instruments.

Component image could not be loaded.
Complete Component Specifications
| Category | Audio Amplifier |
|---|---|
| Manufacturer | Texas Instruments |
| Voltage Min | 4.0 |
| Voltage Max | 18.0 |
| Logic Level | Analog |
| Pins | 8 |
| Interface | Analog |
| Form Factor | PDIP-8 |
| Software Support | Generic/Arduino |
| Current Draw | 4mA IQ |
