Power Regulator | Texas Instruments

LM317T

Technical datasheet, operating ranges, and workbench specifications for LM317T manufactured by Texas Instruments.

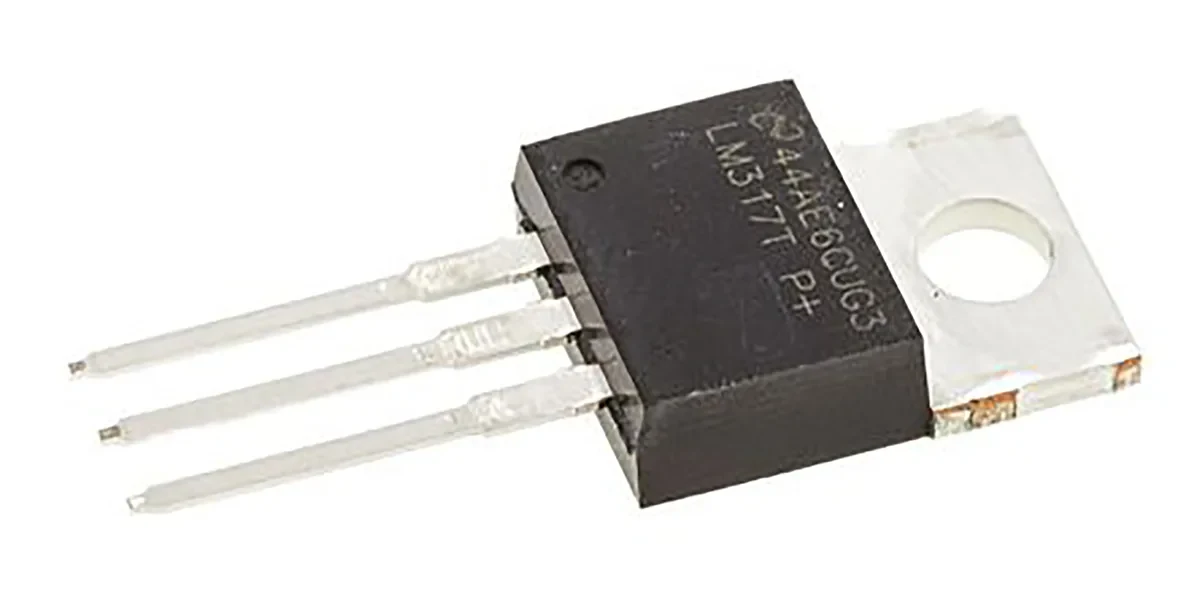

LM317T component photo

Complete Component Specifications

CategoryPower Regulator
ManufacturerTexas Instruments
Voltage Min3.0
Voltage Max40.0
Logic LevelAnalog
Pins3
InterfaceADJ
Form FactorTO-220
Software SupportTI WEBENCH
Current Draw3.5mA typical
