Power Regulator | Texas Instruments

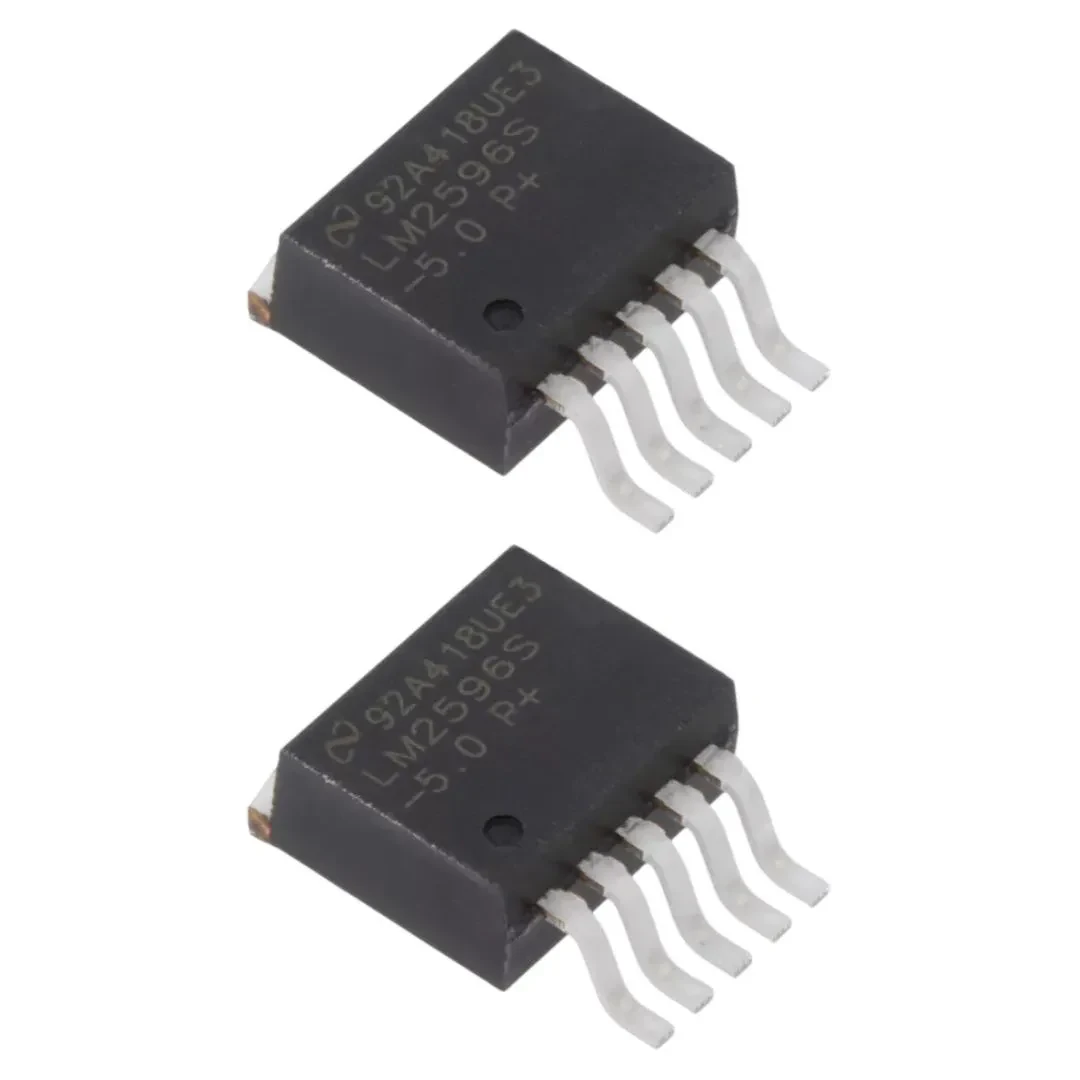

LM2596S
Technical datasheet, operating ranges, and workbench specifications for LM2596S manufactured by Texas Instruments.

Component image could not be loaded.
Complete Component Specifications
| Category | Power Regulator |
|---|---|
| Manufacturer | Texas Instruments |
| Voltage Min | 4.5 |
| Voltage Max | 40.0 |
| Logic Level | TTL-compatible |
| Pins | 5 |
| Interface | EN |
| Form Factor | TO-263 |
| Software Support | TI WEBENCH |
| Current Draw | 5mA typical |
