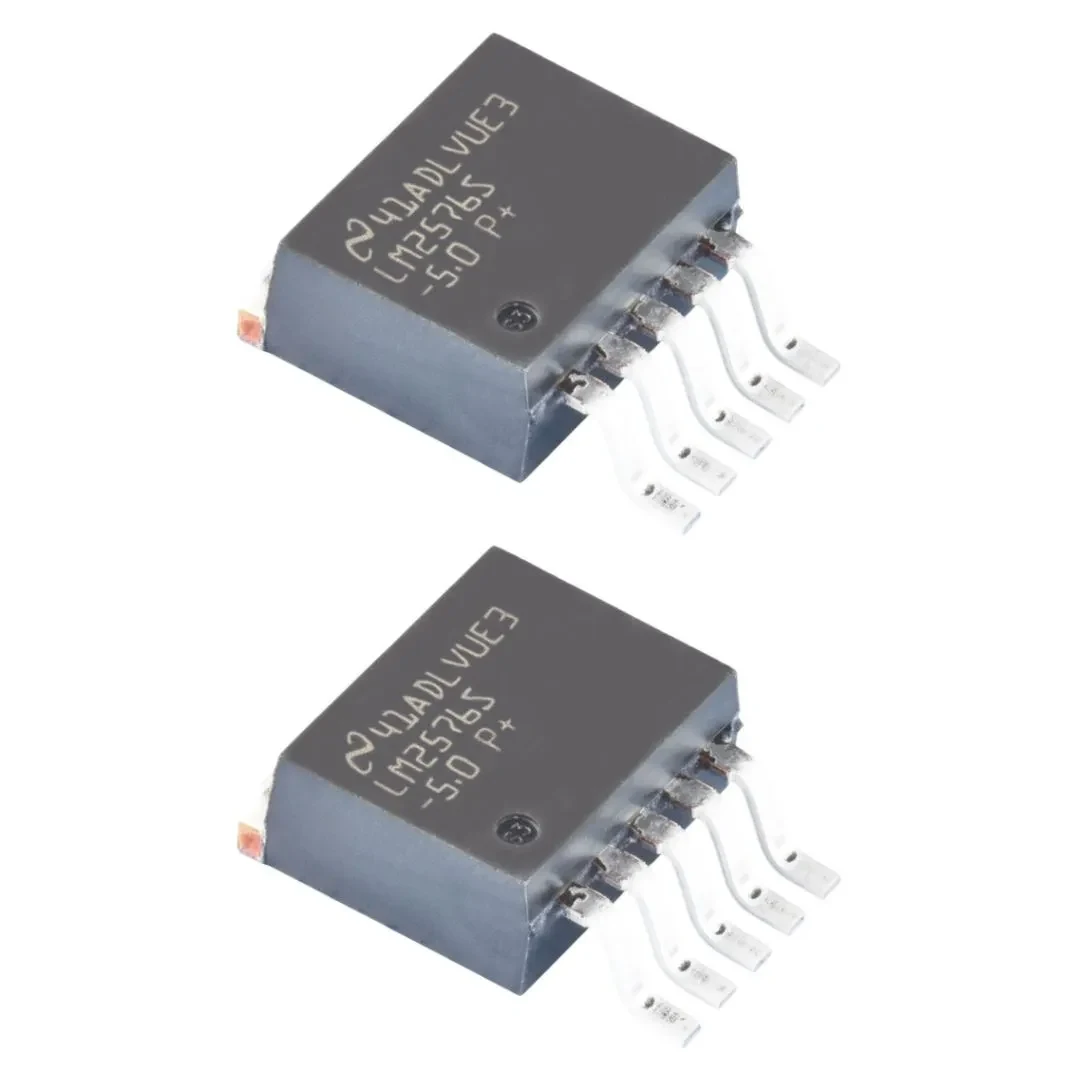

LM2576S-5.0
Technical datasheet, operating ranges, and workbench specifications for LM2576S-5.0 manufactured by Texas Instruments.
Image could not be loaded.Image could not be loaded.Technical datasheet, operating ranges, and workbench specifications for LM2576S-5.0 manufactured by Texas Instruments.
Image could not be loaded.| Category | Buck Regulator |
|---|---|
| Manufacturer | Texas Instruments |
| Voltage Min | 7 |
| Voltage Max | 40 |
| Logic Level | N/A |
| Pins | 5 |
| Interface | Power |
| Form Factor | TO-263 |
| Software Support | N/A |
| Current Draw | ~5 mA quiescent |
These are unverified user contributions, separate from the manufacturer specifications above. Check the official datasheet before relying on technical advice.
